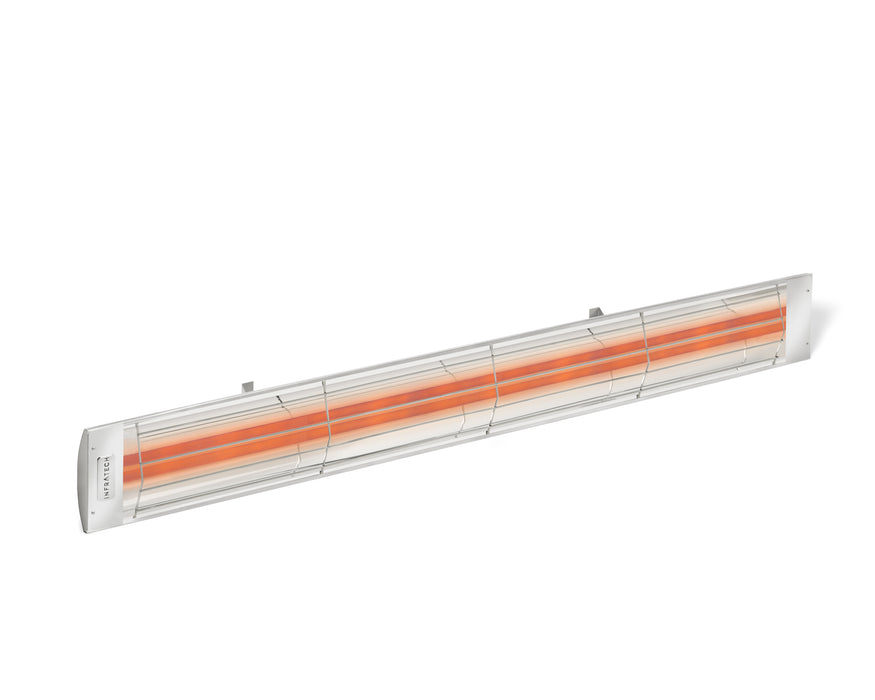

The Infratech CD-Series Dual Element 6000W Electric Patio Heater is engineered to deliver powerful, targeted warmth with a sleek, modern profile. Part of the Contemporary Series, this fixture is ideal for high-visibility residential and commercial applications where both style and performance are essential. With dual quartz elements, eco-friendly infrared technology, and multiple finish options, it combines superior heating capacity with architectural versatility. Designed for flush mounting or surface installation, it enhances outdoor and semi-enclosed spaces while maintaining minimal maintenance requirements.
Please Note: To ensure optimal performance and safety, Infratech heaters must be hard-wired to a dedicated circuit by a licensed electrician. These units are not designed for plug-in use and should only be installed by qualified professionals.
Key Features
Key Features
-

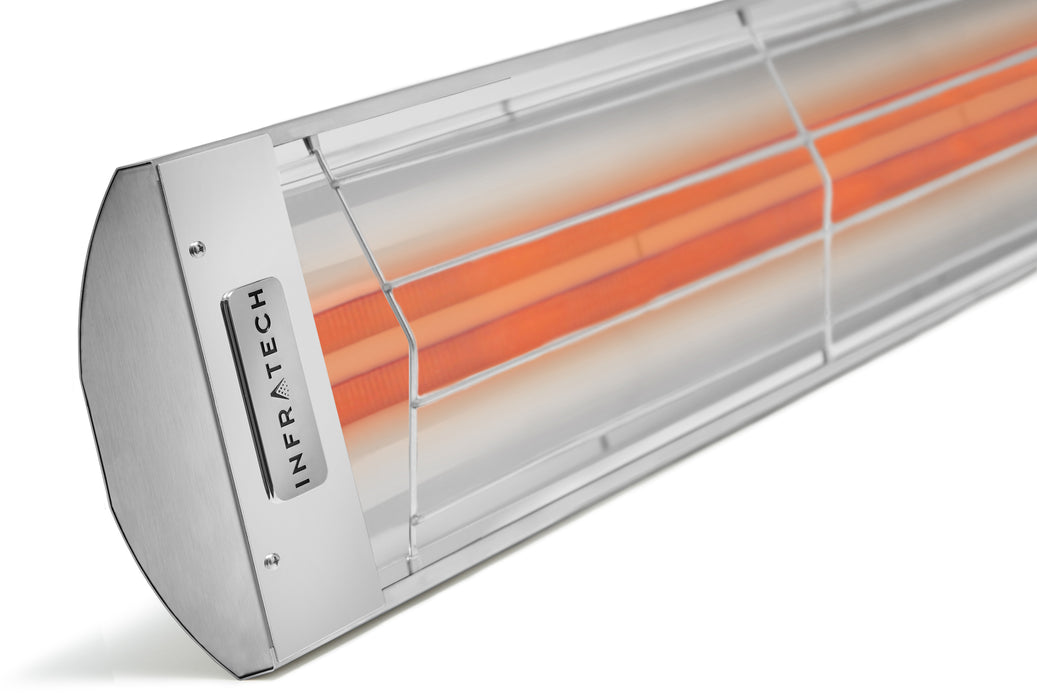

High-Output Dual Quartz Elements – Provides concentrated infrared heat with coverage up to 121 sq. ft. (approx. 11' x 11').
-
Contemporary Low-Profile Design – Modern housing complements upscale residential and hospitality environments.
-
Durable Stainless Steel Construction – Heavy-duty build with optional powder-coated finishes (black, white, almond, beige, bronze, biscuit, grey, or copper).
-

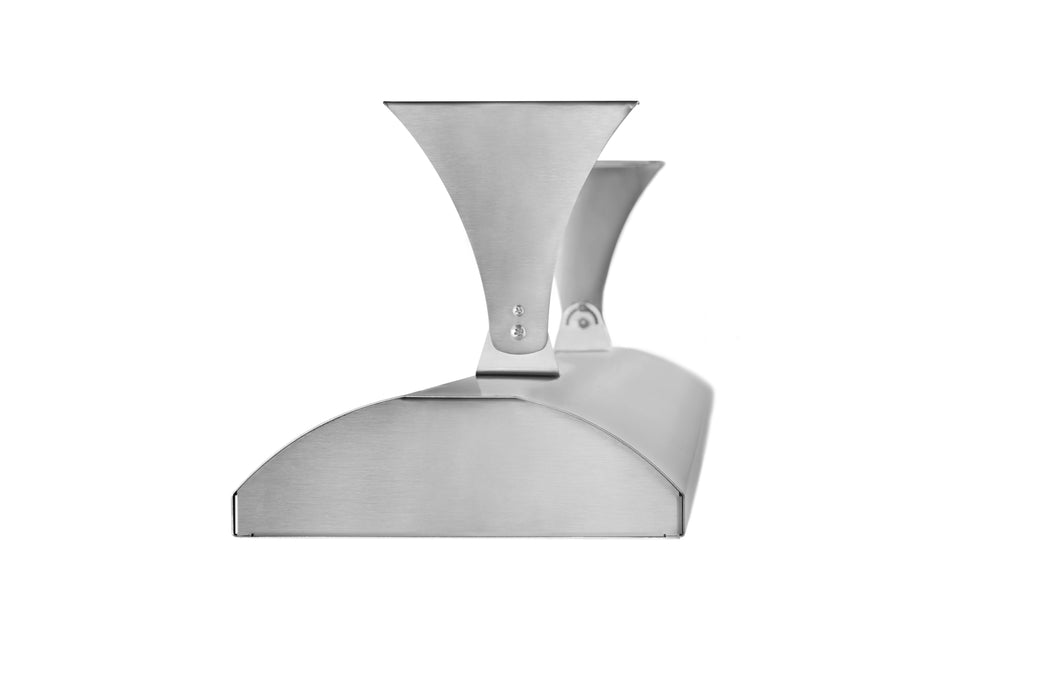

Flexible Mounting Options – Compatible with wall, ceiling, post, and flush-mount installations; adjustable from 0° to 60°.
-
Indoor/Outdoor Rated – UL listed for safe use in both residential and commercial settings.
-
Eco-Friendly Operation – More than 90% energy efficiency with zero emissions and silent performance.
-
Extended Element Life – Quartz elements rated for approximately 5,000 hours of operation.
-
Low Maintenance – Designed for long-term reliability with minimal upkeep.
-
Made in the USA – Backed by a 3-year manufacturer’s warranty.
Note: All powder-coated units (black, white, almond, beige, bronze, biscuit, grey, copper) are non-returnable.
Specifications & Dimensions
|
Dimensions & Weight
|
|
| Length |
61.25"
|
| Height |
8.88"
|
| Depth |
2.5"
|
| Weight |
20 lbs
|
|
Heating Specifications
|
|
| Heating Area |
121 sq. ft.
|
| Fuel Source |
Electric
|
|
Infrared Heat Technology
|
Medium Wave
|
|
Installation Details
|
|
|
Minimum Mounting Height
|
96"
|
|
Maximum Mounting Height
|
144"
|
|
Mounting Angle
|
0° to 60°
|
|
Can be Recessed
|
Yes
|
|
Mounting Options
|
Recessed, Wall Mount
|
|
Lamping Details
|
|
|
Standard Wattage
|
6000 watts
|
|
Voltage Rating
|
208 V, 240 V, 277 V, 480 V
|
|
Amperage
|
28.85 A / 25 A / 21.66 A / 12.5 A
|
|
Product Details
|
|
|
Material
|
Steel
|
|
Application
|
Commercial or Residential
|
|
IPX Rating
|
IPX4 (weather resistant)
|
|
Element Life
|
Approx. 5,000 hours
|
|
UL Listed
|
Indoor and Outdoor use
|
|
Made In
|
USA |
Whats Included?
What’s Included:
Additional Optional Accessories:
Warranty
Infratech provides a 3-year limited warranty on this electric heater, ensuring it is free from defects in materials and workmanship from the original date of purchase.
For complete terms and conditions, please consult the manufacturer’s warranty manual.
