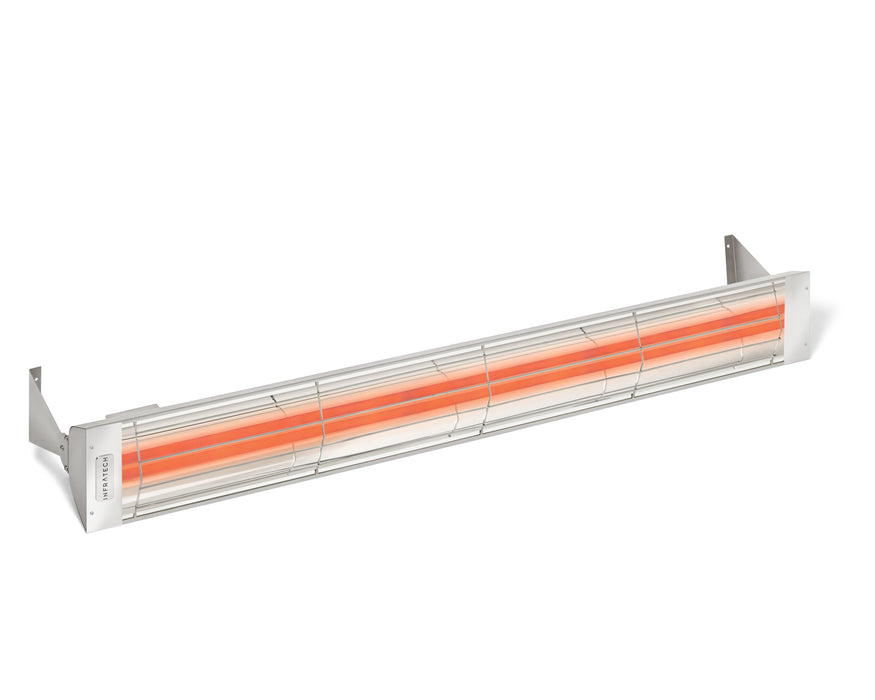

The Infratech WD-Series Dual Element 6000W Electric Patio Heater delivers powerful, consistent warmth for outdoor and semi-enclosed spaces. Built from heavy-duty steel and engineered with dual quartz heating elements, this unit offers an even, comfortable heat distribution ideal for patios, terraces, and commercial venues. Designed for both residential and hospitality environments, it combines a sleek, low-profile look with eco-friendly performance—providing more than 90% energy efficiency, zero emissions, and silent operation. Whether mounted on a wall, ceiling, or recessed into a structure, it extends your outdoor season year-round with minimal maintenance.
Please Note: To ensure optimal performance and safety, Infratech heaters must be hard-wired to a dedicated circuit by a licensed electrician. These units are not designed for plug-in use and should only be installed by qualified professionals.
Key Features
-
High-Performance Dual Heating Elements – Even, efficient infrared heat output covering up to 121 sq. ft.
-
Durable Construction – Heavy-gauge steel housing built to withstand outdoor conditions.
-

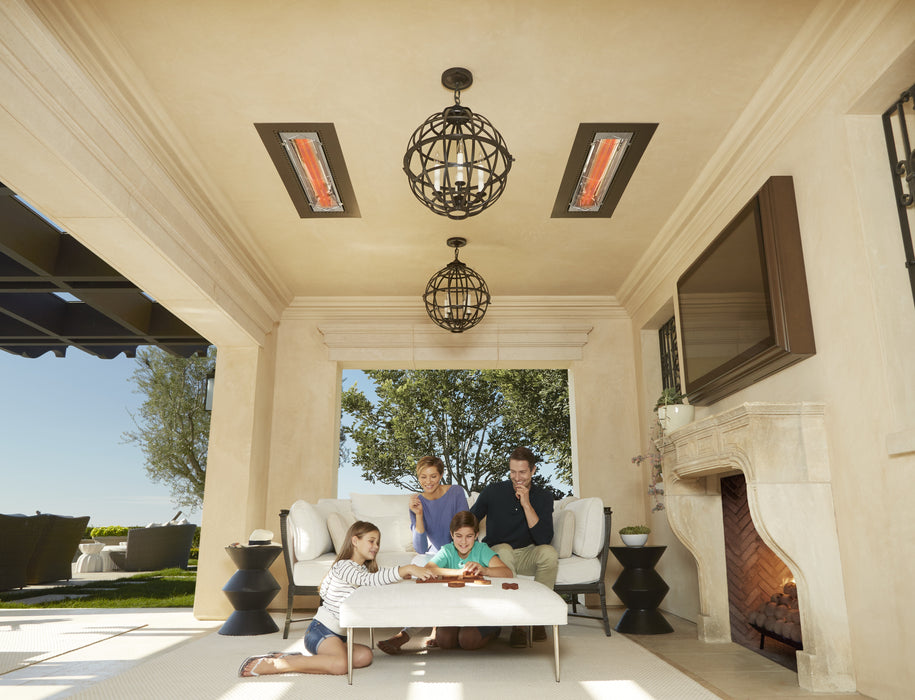

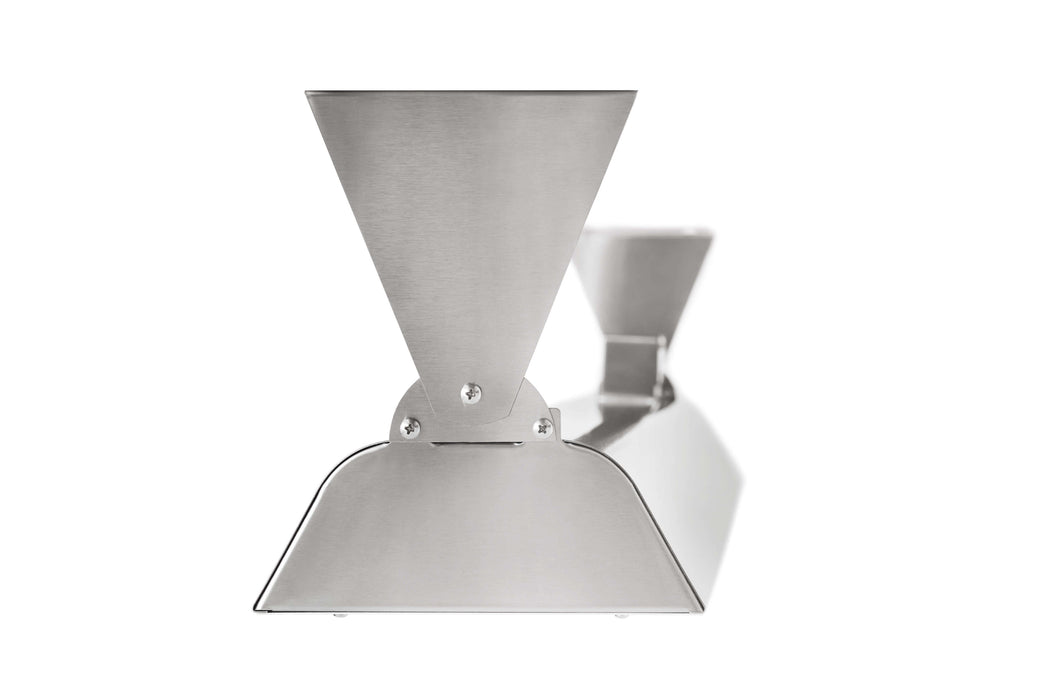

Versatile Mounting Options – Wall, ceiling, post mount, or recessed installations available.
-
Eco-Friendly Operation – Over 90% energy efficiency, no harmful emissions, and silent performance.
-
Long Service Life – Quartz elements rated for approximately 5,000 hours of use.
-
Indoor/Outdoor Rated – UL listed for safe operation in commercial and residential spaces.
-

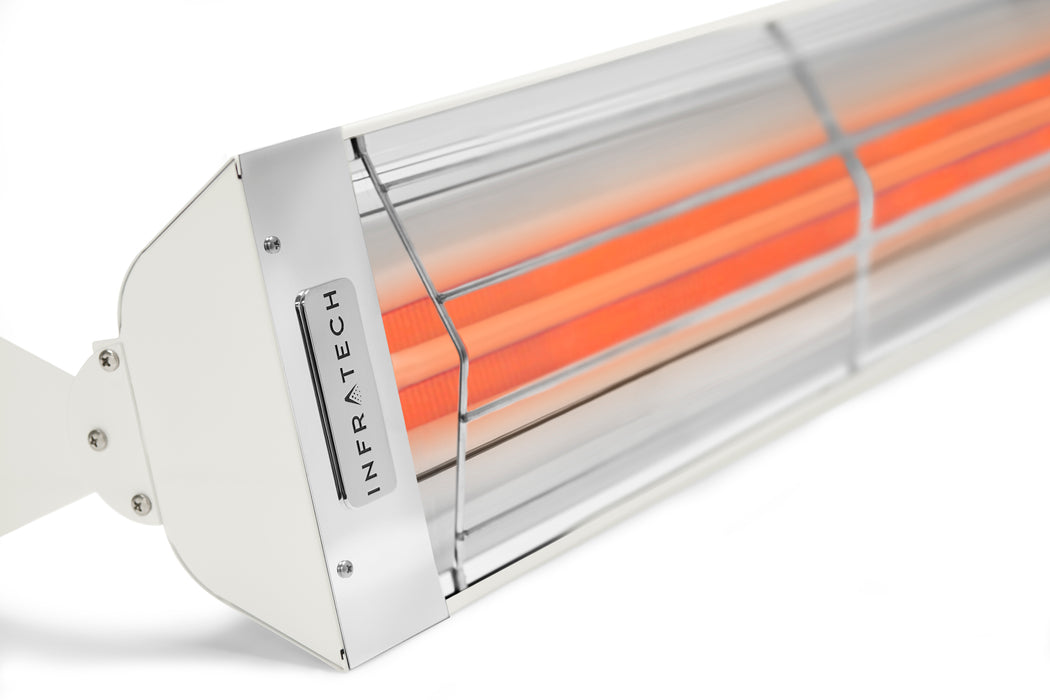

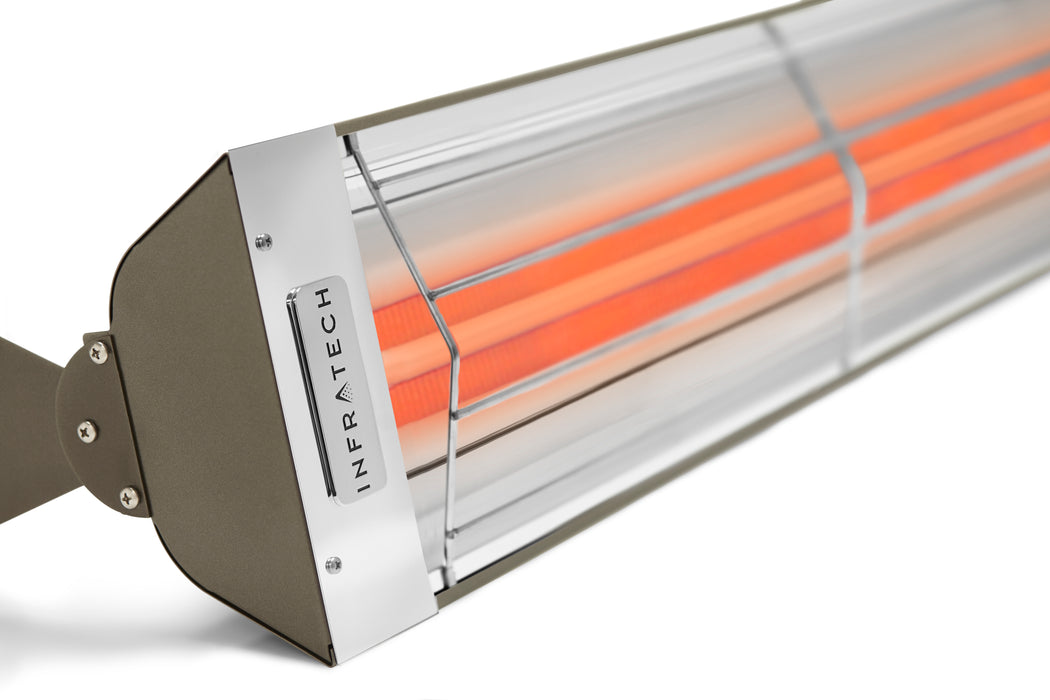

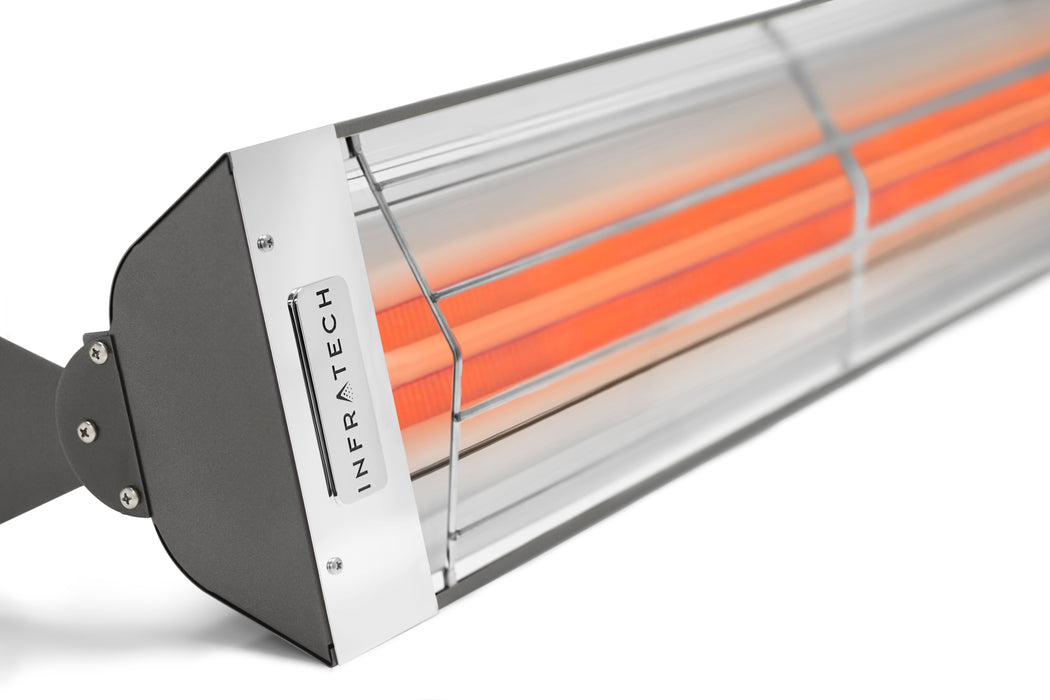

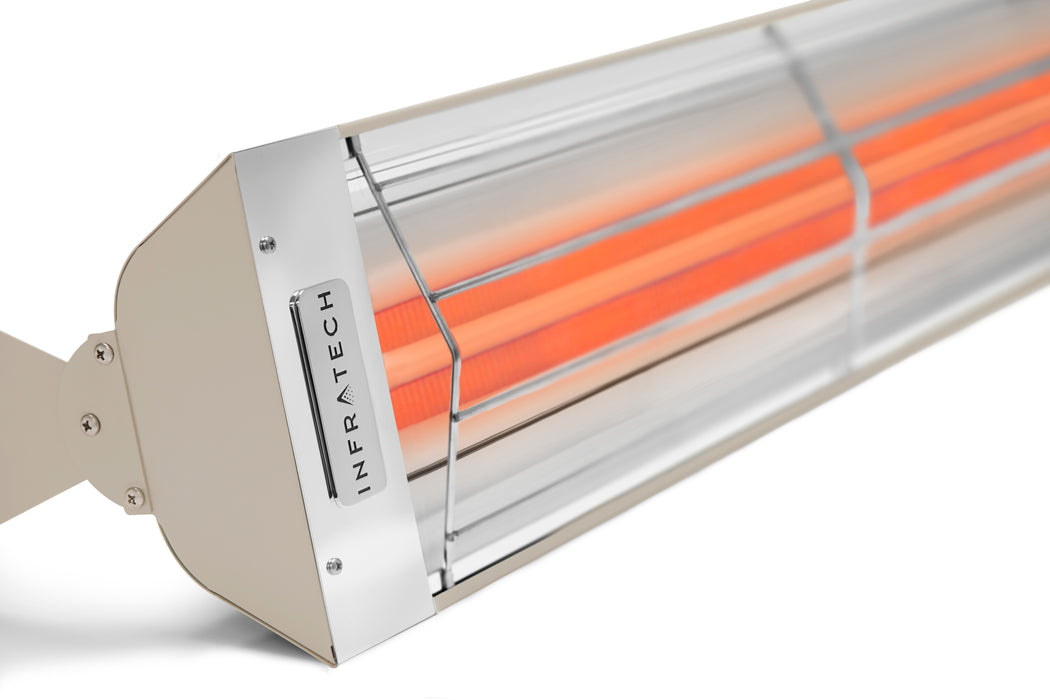

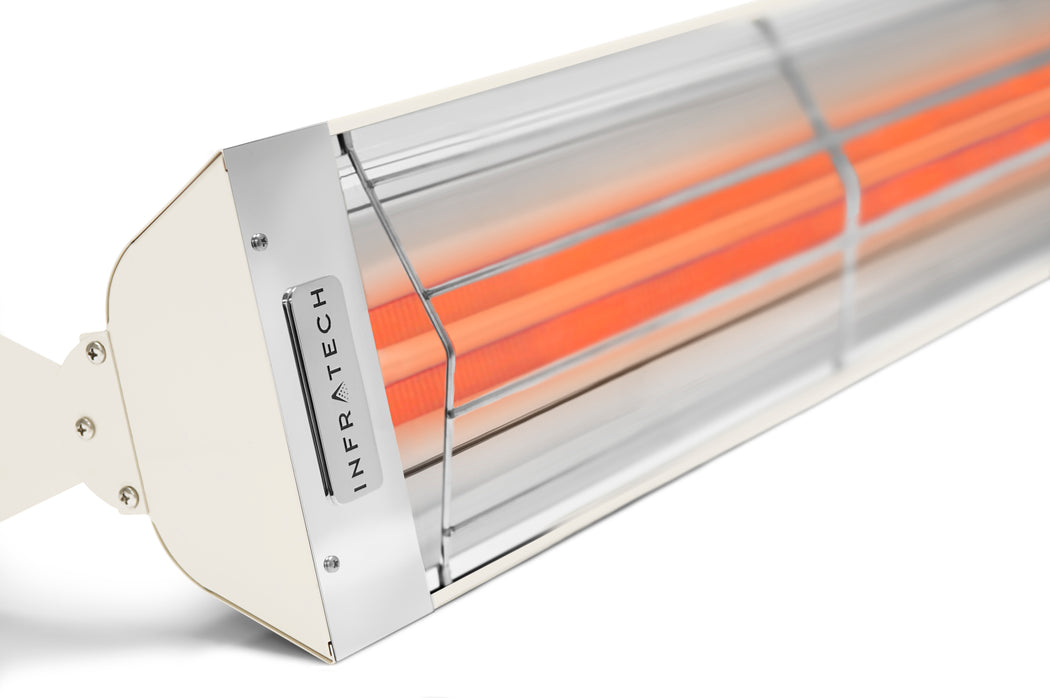

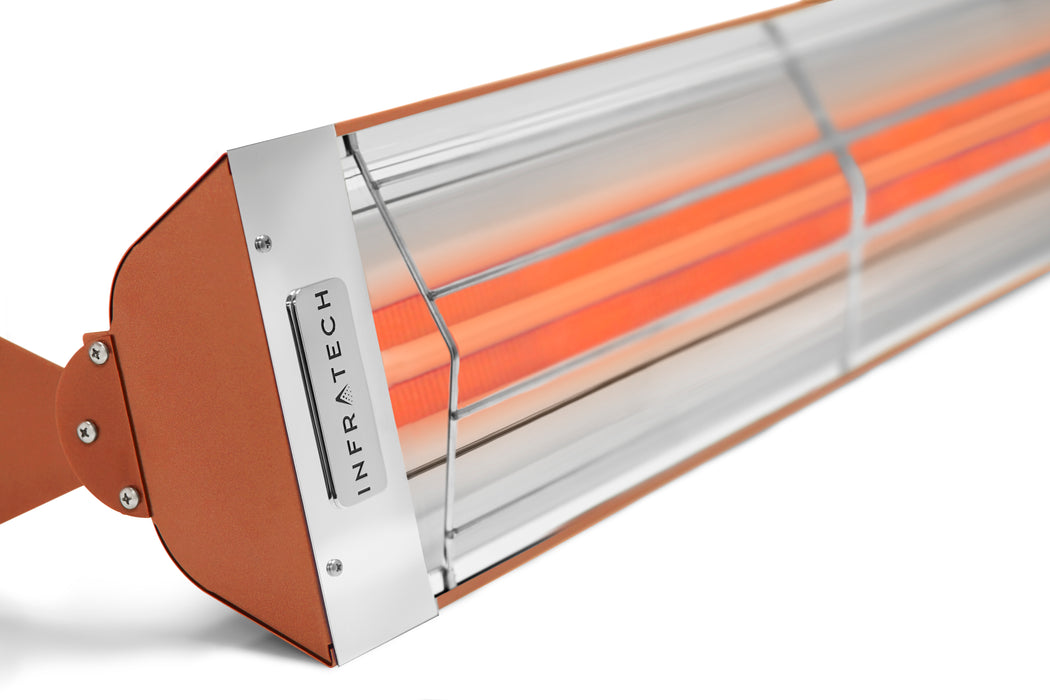

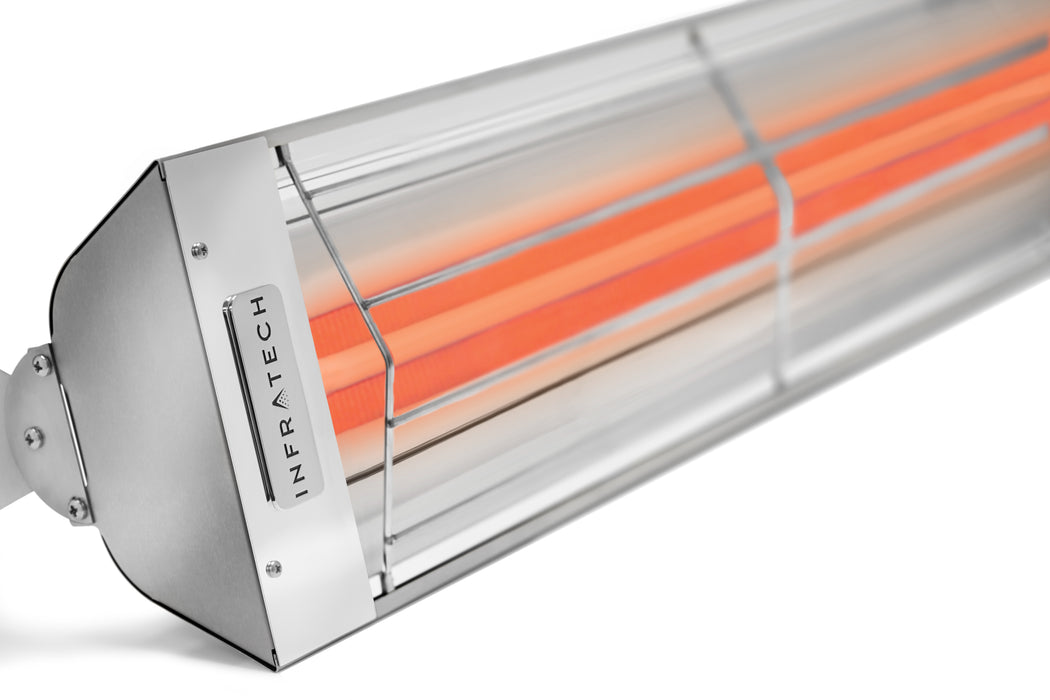

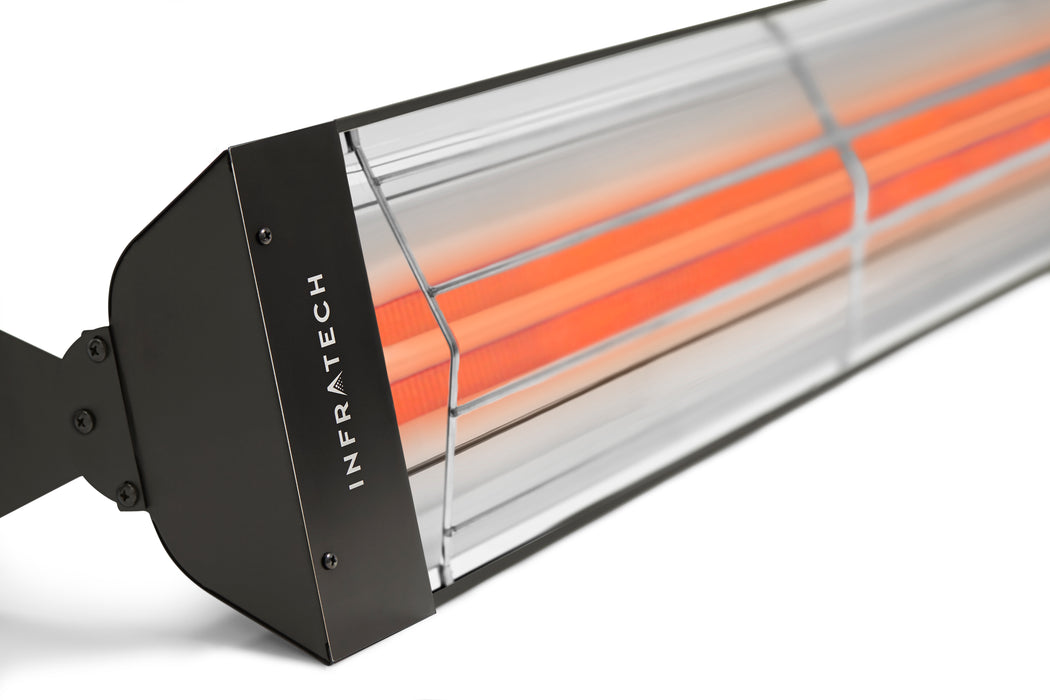

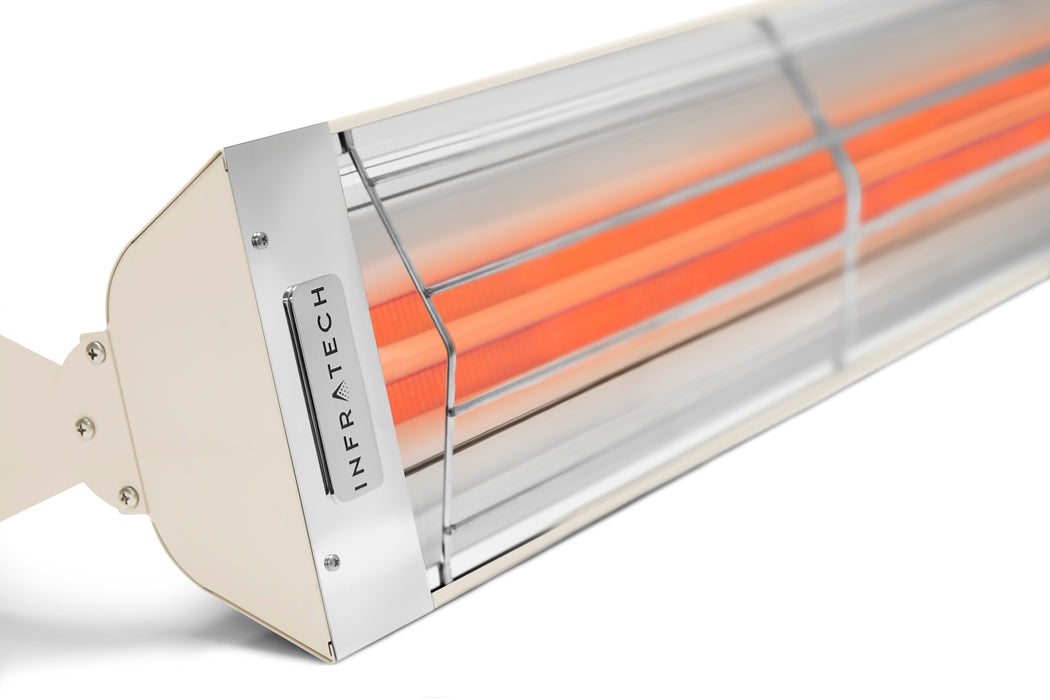

Custom Finish Options – Available in stainless steel, white, almond, beige, biscuit, bronze, copper, grey or black powder coating.
-
Proudly Made in the USA – Backed by a 3-year manufacturer’s warranty.
Note: All powder-coated units (black, white, almond, beige, bronze, biscuit, grey, copper) are non-returnable.
Specifications & Dimensions
Dimensions & Weight
|
|
Length |
61.25"
|
Height |
8.19"
|
Depth/Extension |
6"
|
Weight |
21 lbs
|
Heating Specifications
|
|
Heating Area |
121 sq. ft.
|
Fuel Source |
Electric
|
Infrared Heat Technology
|
Medium Wave
|
Installation Details
|
|
Minimum Mounting Height
|
96"
|
Maximum Mounting Height
|
144"
|
Mounting Angle
|
0° to 60°
|
Can be Recessed
|
Yes
|
Mounting Options
|
Wall, Ceiling, Post, or Recessed
|
Lamping Details
|
|
Standard Wattage
|
6000 watts
|
Voltage Rating
|
208 V, 240 V, 277 V, 480 V
|
Amperage
|
28.85 A / 25 A / 21.66 A / 12.5 A
|
Product Details
|
|
Material
|
Steel
|
Application
|
Commercial or Residential
|
IPX Rating
|
IPX4 (weather resistant)
|
Element Life
|
Approx. 5,000 hours
|
UL Listed
|
Indoor and Outdoor use
|
Made In
|
USA |
Whats Included?
What’s Included:
Additional Optional Accessories:
-

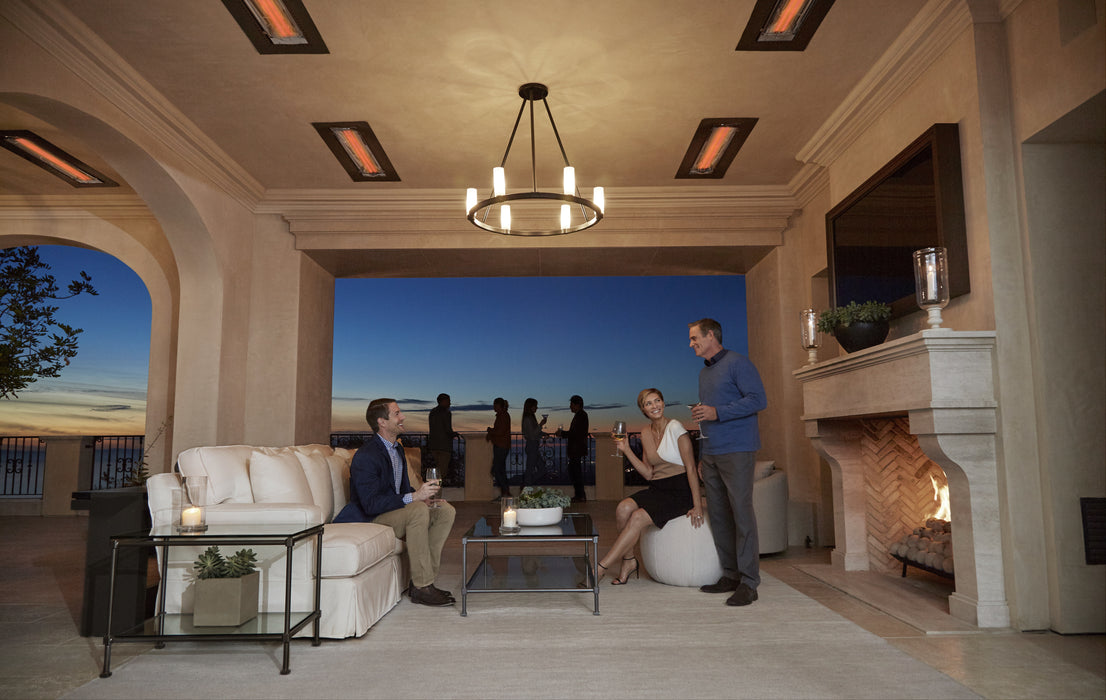

Flush Mount Kit (for recessed ceiling installation)
-
Decor Plate (for a clean aesthetic finish)
-
Protective cover (for weather protection when not in use)
-
Duplex switch (for independent control of heating elements)
Warranty
Infratech provides a 3-year limited warranty on this electric heater, ensuring it is free from defects in materials and workmanship from the original date of purchase.
For complete terms and conditions, please consult the manufacturer’s warranty manual.
