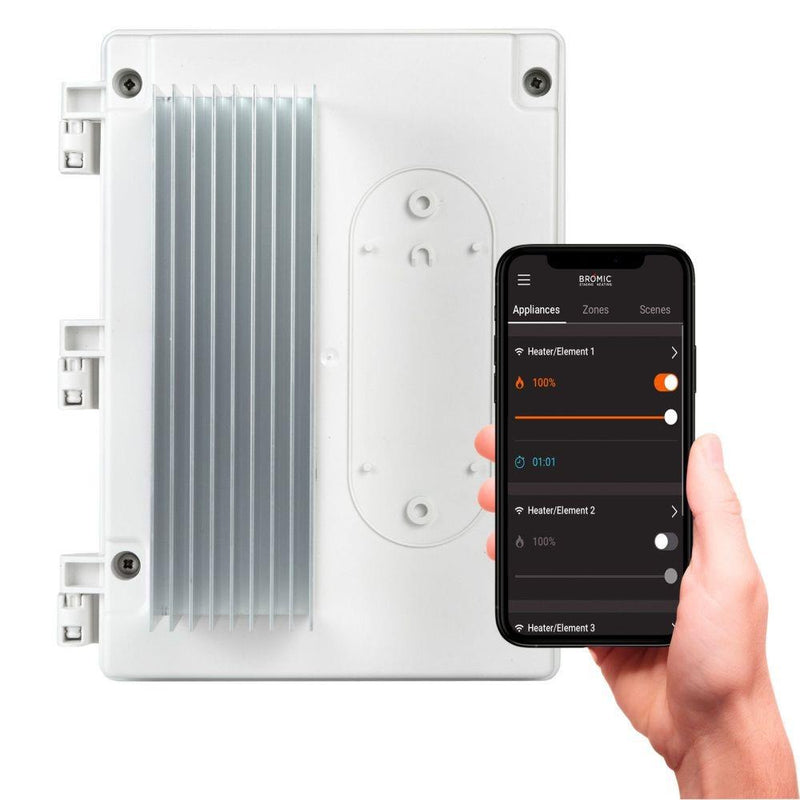

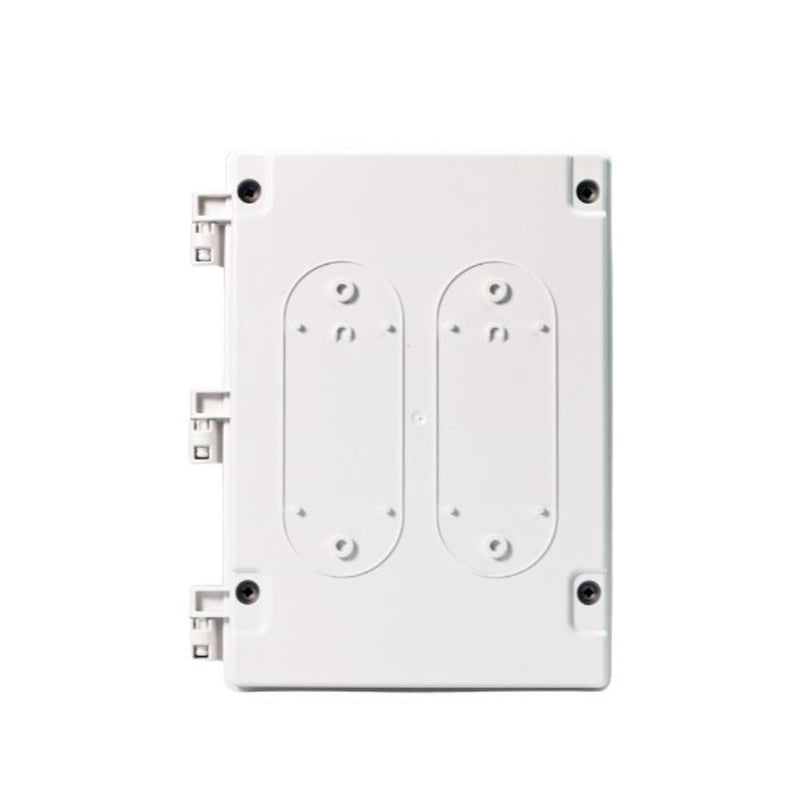

The Bromic Affinity Smart-Heat Control for Eclipse Pendant manages both the heating output and integrated LED lighting on the Bromic Eclipse Smart-Heat Electric Pendant heater. Available in 1-Channel and 5-Channel configurations, it brings full smart-control capability to single-pendant residential installations and large multi-zone commercial venues alike.
The 1-Channel model handles one Eclipse Pendant circuit, making it the right choice for a single heater or a paired set on the same circuit. The 5-Channel model controls up to five independent Eclipse Pendant zones simultaneously, with built-in Ethernet and BMS (0–10V) integration for venues that require connection to a building management system. Both connect to the Bromic Smart-Heat App via Wi-Fi and Bluetooth for scheduling, dimming, and zone grouping.
Important: This controller is designed exclusively for the Bromic Eclipse Smart-Heat Electric Pendant heater. It is not compatible with the Eclipse Portable, Platinum, Tungsten, Cobalt, or any gas heater model.
Key Features
-
Heat & Light Control – Manages both the infrared heating element and integrated LED lighting on the Eclipse Pendant.
-
1-Channel or 5-Channel – Choose the configuration that matches your installation — single zone or up to five independent zones.
-
Eclipse Pendant Exclusive – Purpose-built for the Bromic Eclipse Smart-Heat Electric Pendant — no adapters required.
-
Smart App Control – Full scheduling, zone grouping, and remote control via the Bromic Smart-Heat App.
-
Wi-Fi & Bluetooth – Connects via 2.4GHz Wi-Fi or Bluetooth for flexible installation.
-
Built-In Ethernet & BMS (5CH) – The 5-Channel model includes native 0–10V BMS and Ethernet connectivity — no Expansion Board needed.
-
Commercial Grade (5CH) – The 5-Channel model is designed for restaurants, hotels, rooftop bars, and large outdoor dining areas.
-
IP54 Rated – Suitable for protected indoor and outdoor mounting locations.
Specifications & Dimensions
| Product Type |
Smart Dimmer Controller for Eclipse Pendant |
| Compatible Heater |
Bromic Eclipse Smart-Heat Electric Pendant |
| Channels |
1 (BH8380051) or 5 (BH8380055) — selected at checkout |
| Connectivity |
Wi-Fi (2.4GHz), Bluetooth |
| Additional Connectivity (5CH) |
Ethernet (built-in), BMS 0–10V (built-in) |
| Protection Rating |
IP54 |
| Application |
1CH: Residential & Commercial / 5CH: Commercial & Hospitality |
| Warranty |
1-Year Manufacturer Warranty |
Channel Options
1-Channel (BH8380051)
Controls one Eclipse Pendant heater circuit — heat output and LED lighting. Ideal for a single heater or two heaters wired to the same circuit. Compatible with the 42-Channel Wireless Master Remote (BH3623002-1) for app-free wall control.

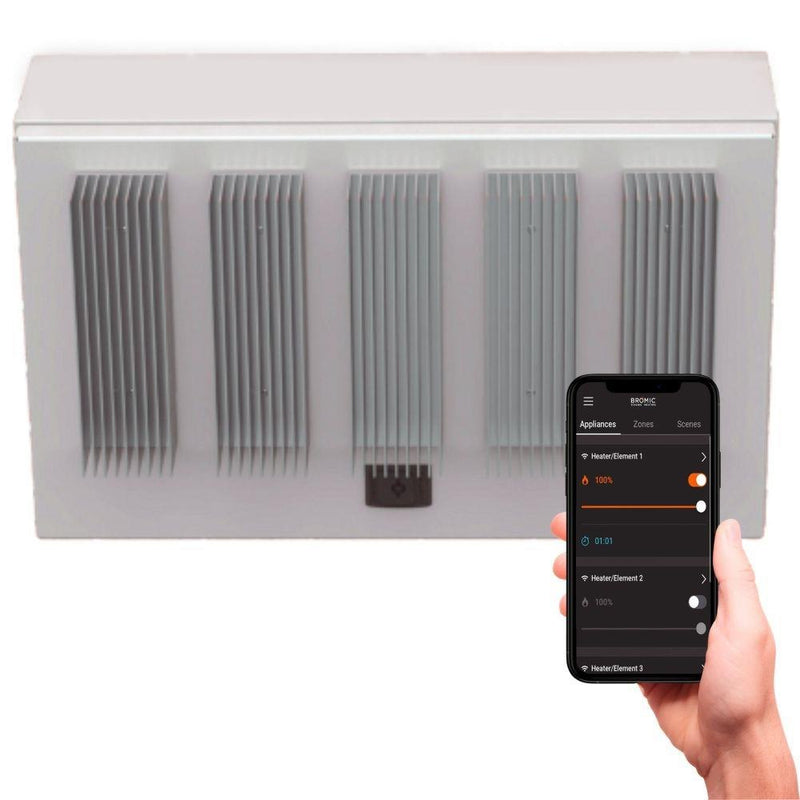

5-Channel (BH8380055)
Controls up to five independent Eclipse Pendant zones simultaneously. Includes built-in Ethernet and BMS (0–10V) connectivity. Requires 3-phase power. Designed for large commercial installations where multiple Eclipse Pendant zones need coordinated or independent control.
