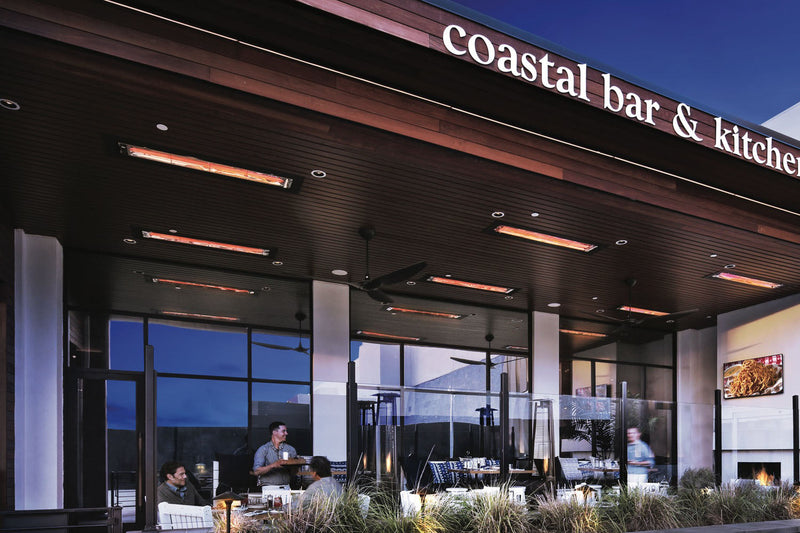

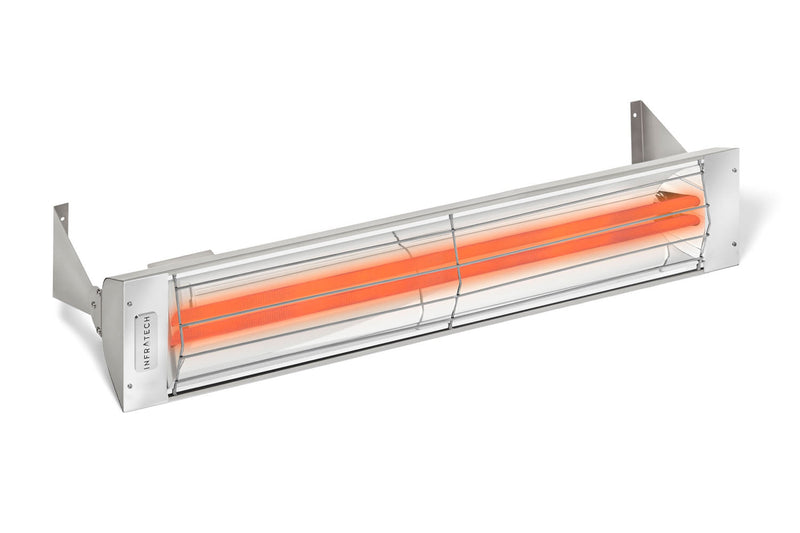

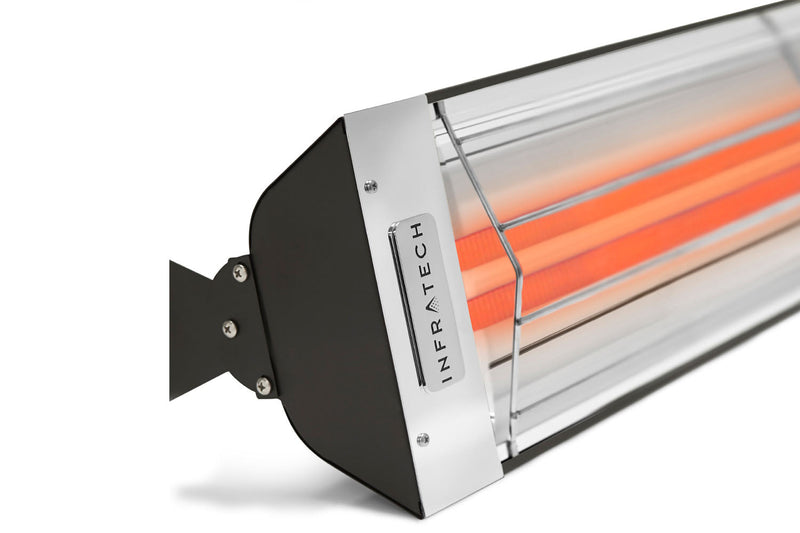

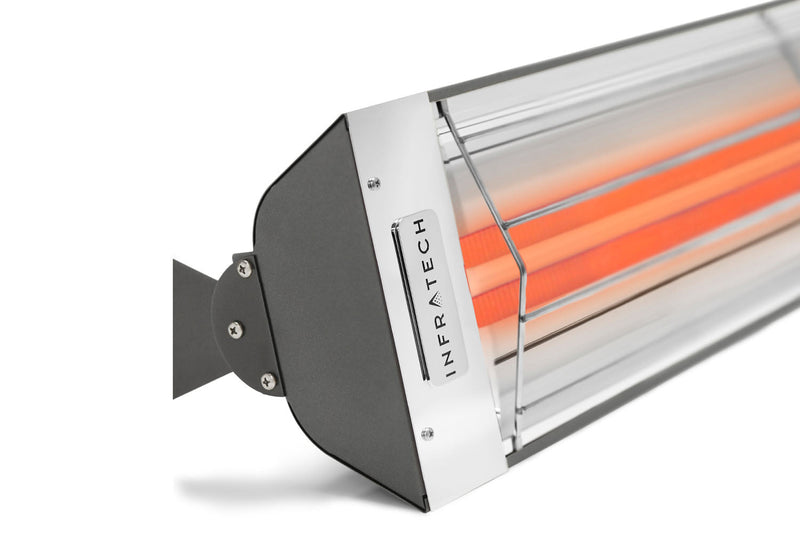

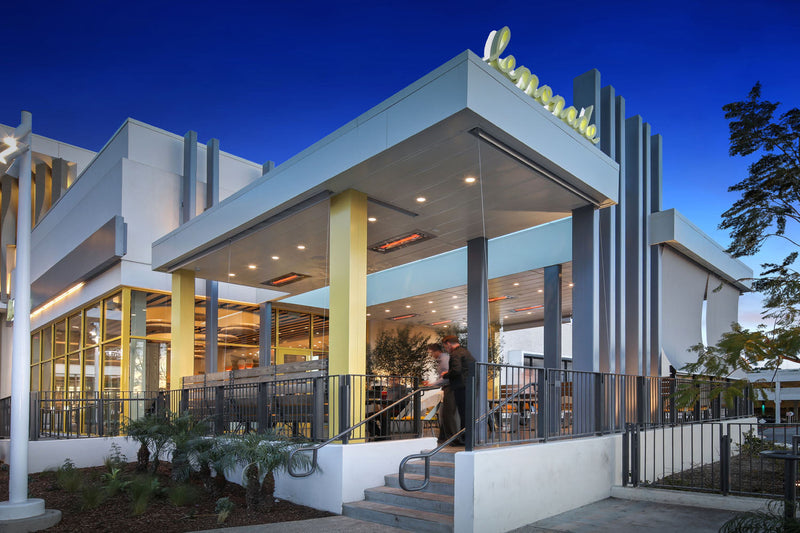

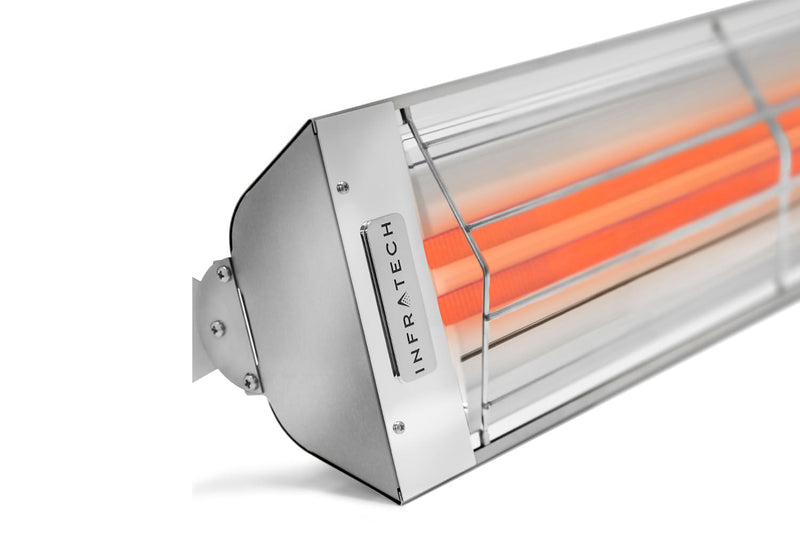

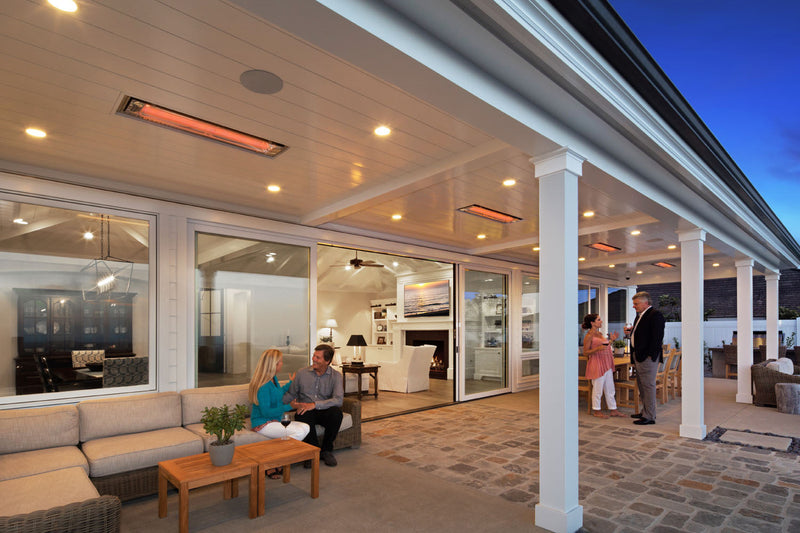

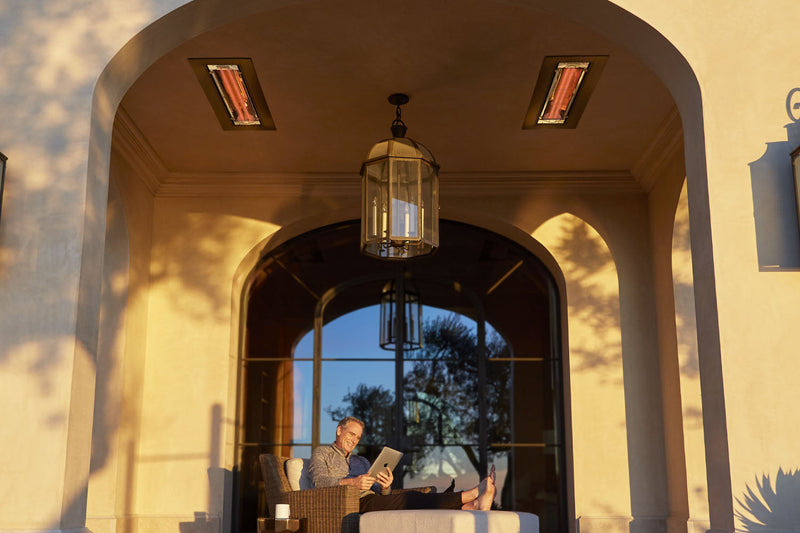

The Infratech WD-Series Dual Element 4000W Electric Patio Heater provides reliable, focused warmth for patios, balconies, and semi-enclosed outdoor spaces. Engineered with dual quartz infrared elements and housed in a durable stainless-steel body, this unit delivers steady, comfortable heat with minimal energy loss. With its slim, modern profile and multiple installation options, it seamlessly integrates into residential backyards, commercial dining areas, and hospitality environments.
Operating at more than 90% energy efficiency, the WD4028SS offers silent performance, zero emissions, and low maintenance requirements—making it an excellent upgrade for year-round outdoor comfort.
Please Note: This heater must be hard-wired to a dedicated circuit by a licensed electrician. Infratech units are not designed for plug-in operation and must be professionally installed for safe and optimal performance.
Key Features
-
High-Performance Dual Heating Elements – Even, efficient infrared heat output covering up to 80 sq. ft.
-
Durable Construction – Heavy-gauge steel housing built to withstand outdoor conditions.
-

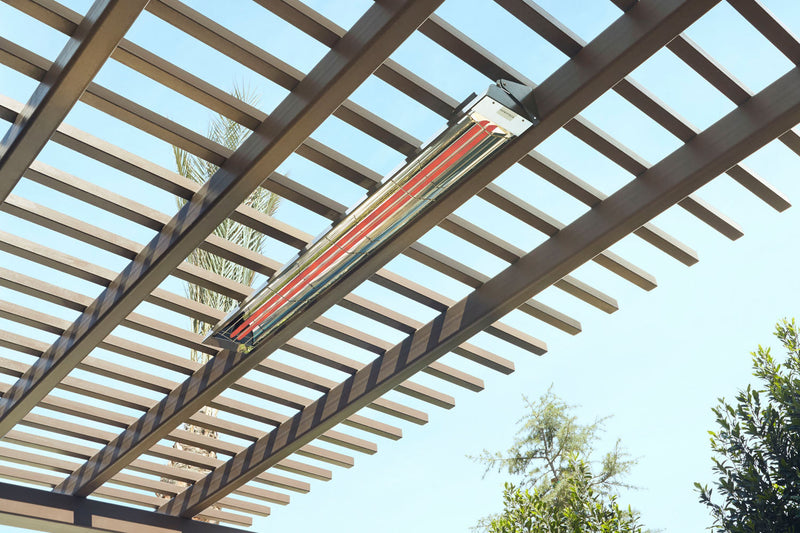

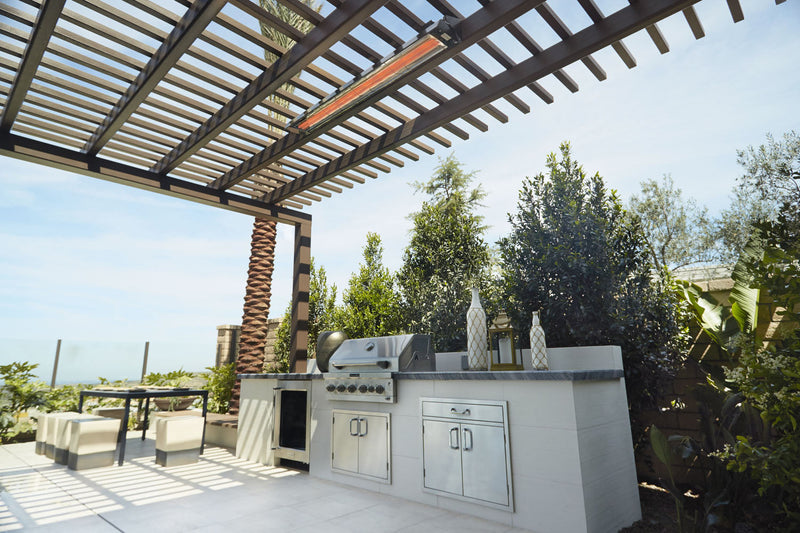

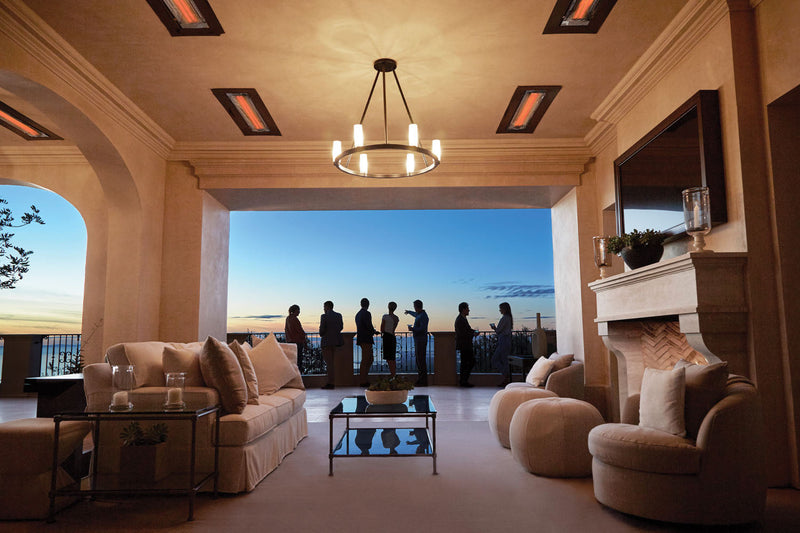

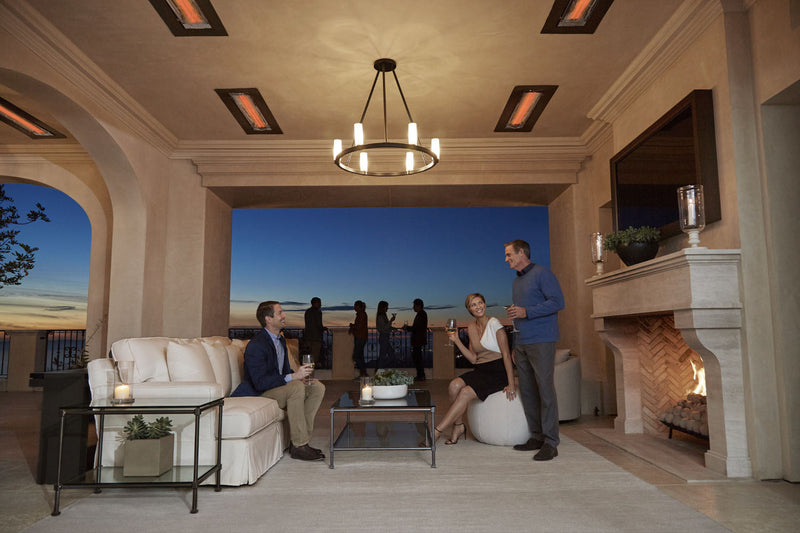

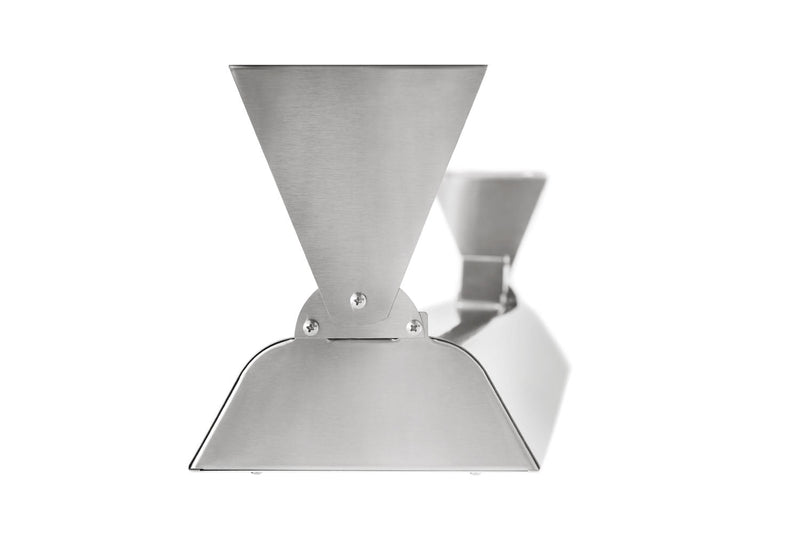

Versatile Mounting Options – Wall, ceiling, post mount, or recessed installations available.
-
Eco-Friendly Operation – Over 90% energy efficiency, no harmful emissions, and silent performance.
-
Long Service Life – Quartz elements rated for approximately 5,000 hours of use.
-
Indoor/Outdoor Rated – UL listed for safe operation in commercial and residential spaces.
-

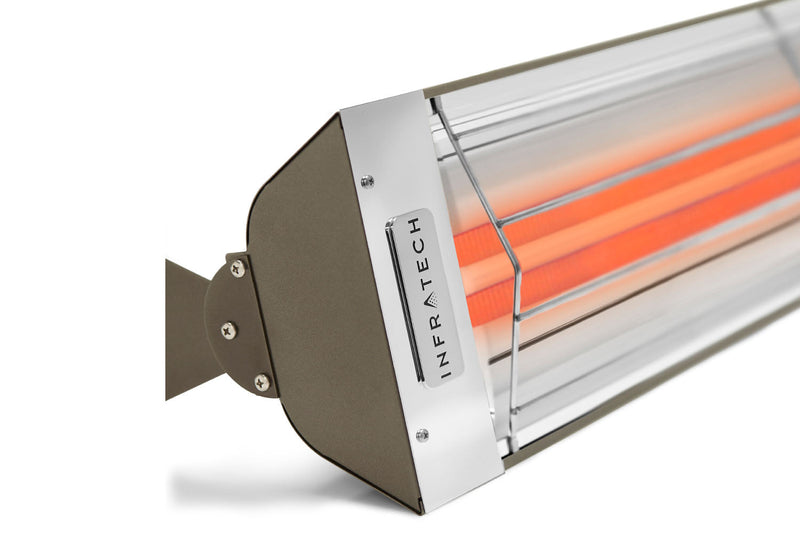

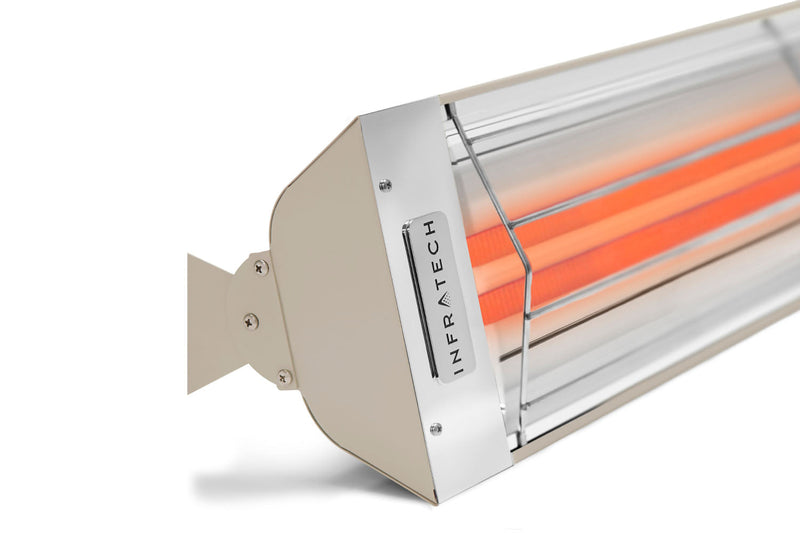

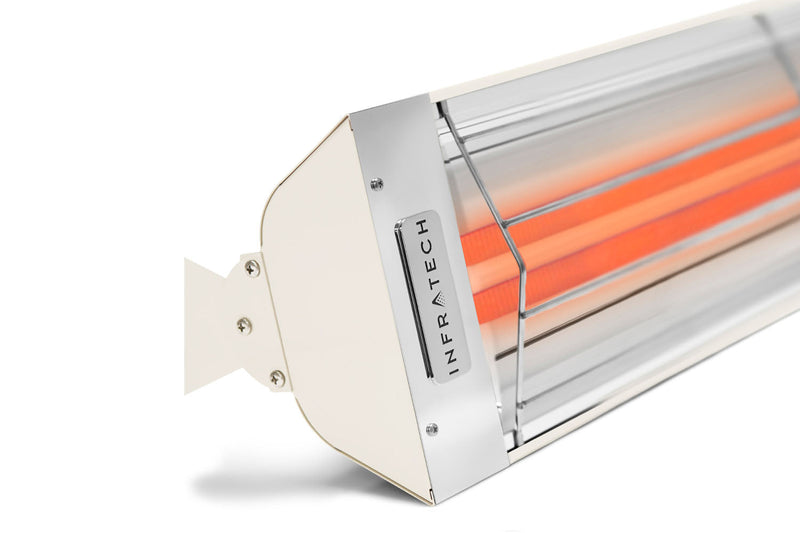

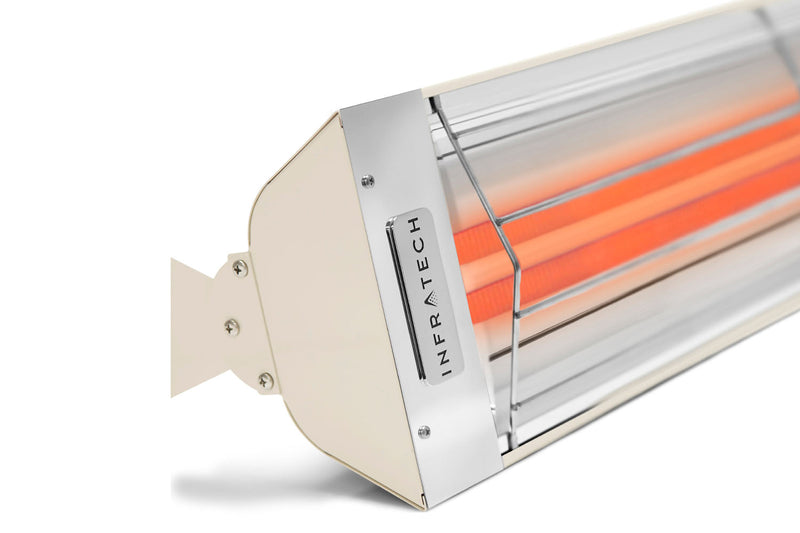

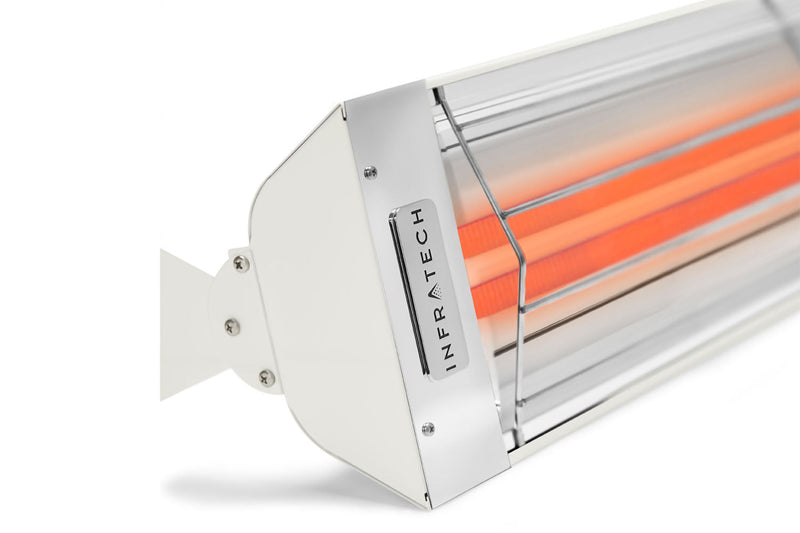

Custom Finish Options – Available in stainless steel, white, almond, beige, biscuit, bronze, copper, grey or black powder coating.
-
Proudly Made in the USA – Backed by a 3-year manufacturer’s warranty.
Note: All powder-coated units (black, white, almond, beige, bronze, biscuit, grey, copper) are non-returnable.
Specifications & Dimensions
|
Dimensions & Weight
|
|
| Length |
39"
|
| Height |
8.18"
|
| Depth/Extension |
9.37"
|
| Weight |
14 lbs
|
|
Heating Specifications
|
|
| Heating Area |
80 sq. ft.
|
| Fuel Source |
Electric
|
|
Infrared Heat Technology
|
Medium Wave
|
|
Installation Details
|
|
|
Minimum Mounting Height
|
96"
|
|
Maximum Mounting Height
|
120"
|
|
Mounting Angle
|
0° to 60°
|
|

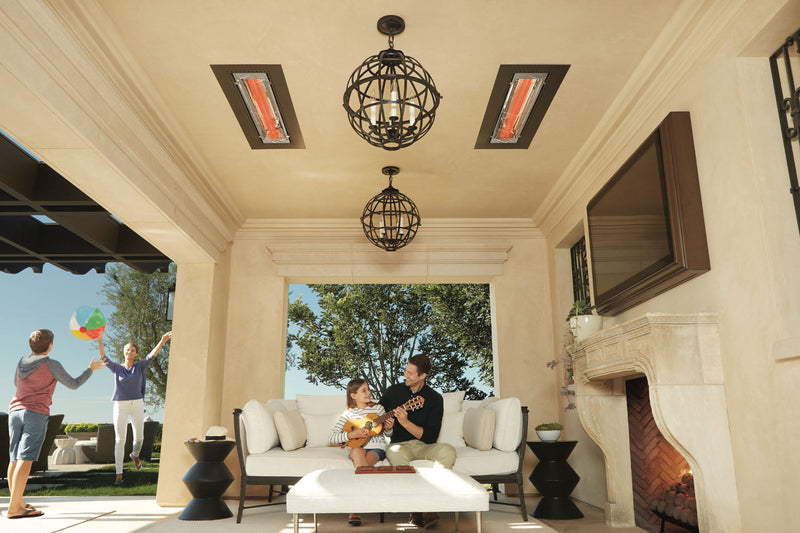

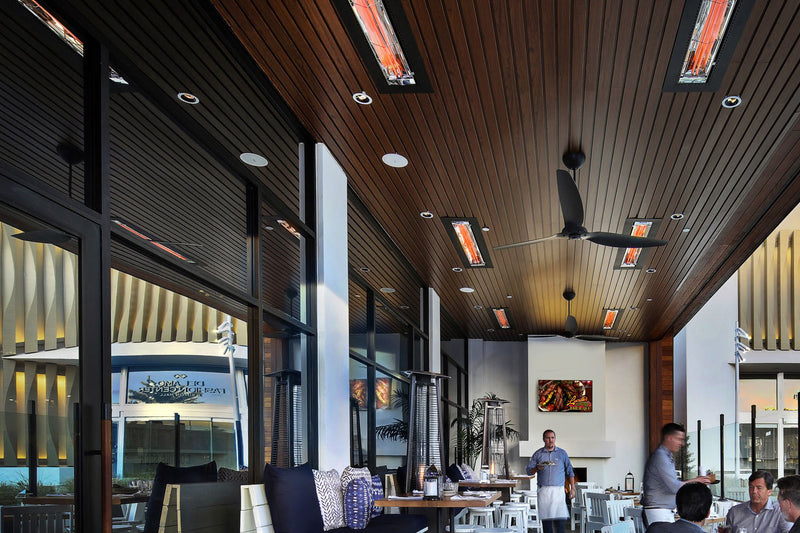

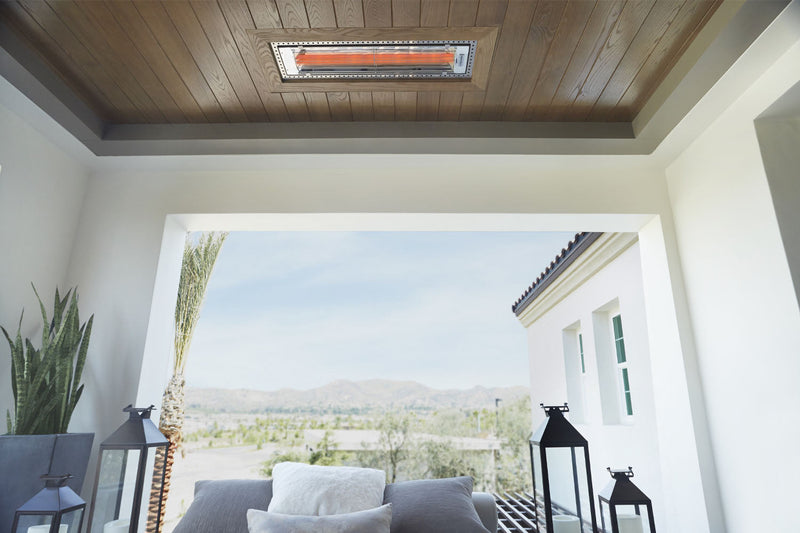

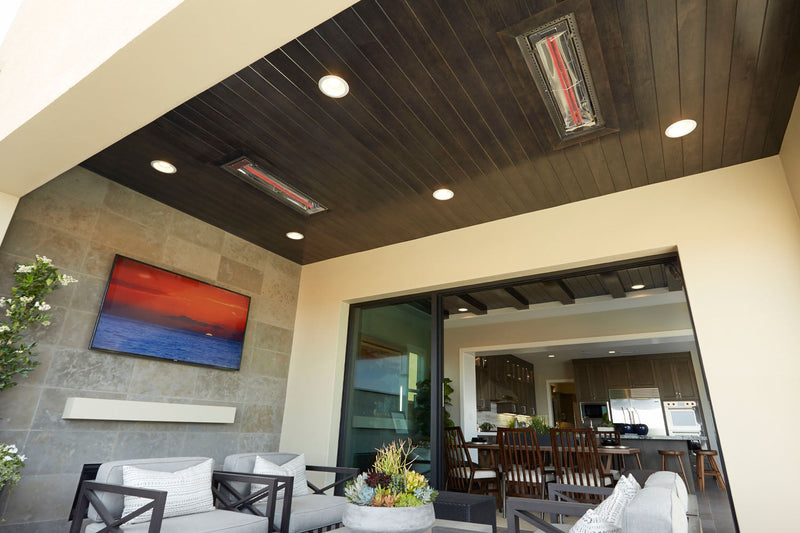

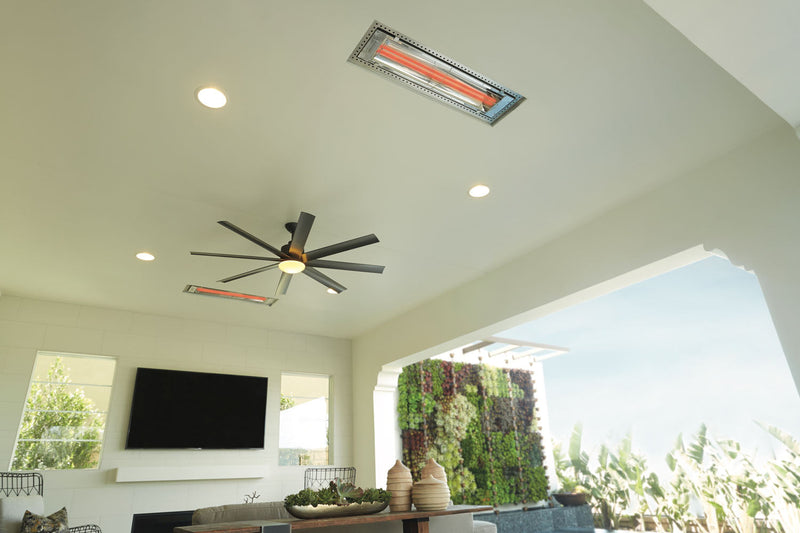

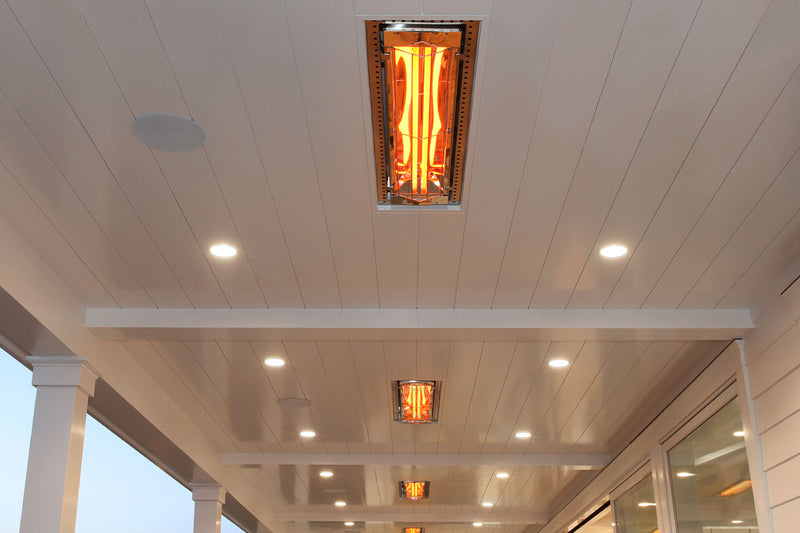

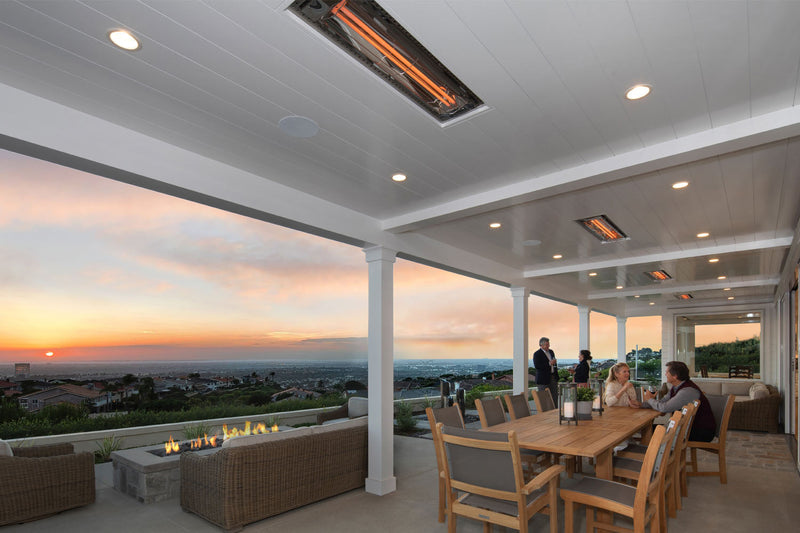

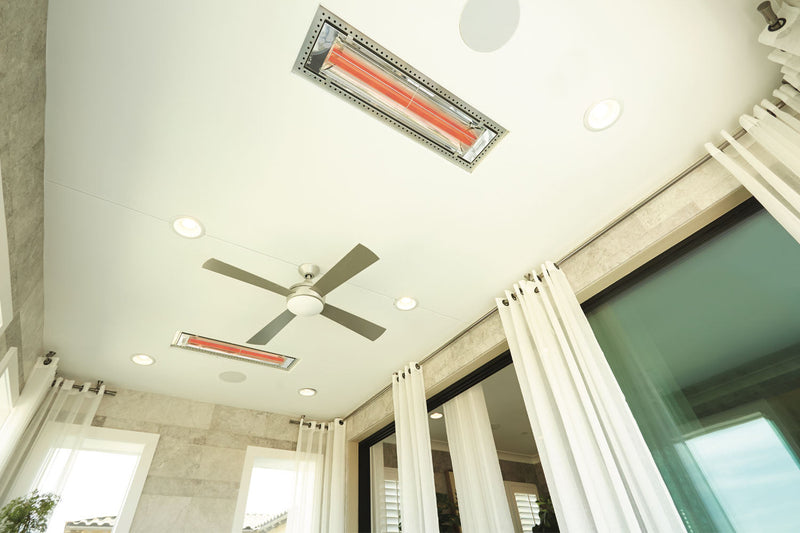

Can be Recessed
|
Yes
|
|
Mounting Options
|
Wall, Ceiling, Post, or Recessed
|
|
Lamping Details
|
|
|
Standard Wattage
|
4000 watts
|
|
Voltage Rating
|
208 V, 240 V, 277 V, 480 V
|
|
Amperage
|
19.23 A / 16.67 A / 14.44 A / 8.33 A
|
|
Product Details
|
|
|
Material
|
Steel
|
|
Application
|
Commercial or Residential
|
|
IPX Rating
|
IPX4 (weather resistant)
|
|
Element Life
|
Approx. 5,000 hours
|
|
UL Listed
|
Indoor and Outdoor use
|
|
Made In
|
USA |
Whats Included?
What’s Included:
Additional Optional Accessories:
Warranty
Infratech provides a 3-year limited warranty on this electric heater, ensuring it is free from defects in materials and workmanship from the original date of purchase.
For complete terms and conditions, please consult the manufacturer’s warranty manual.
