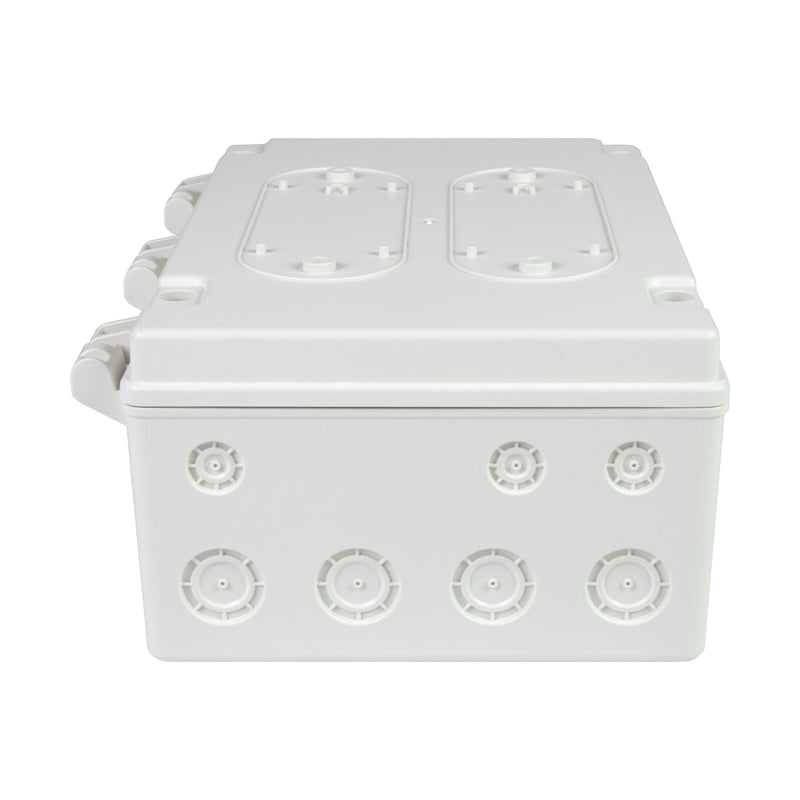

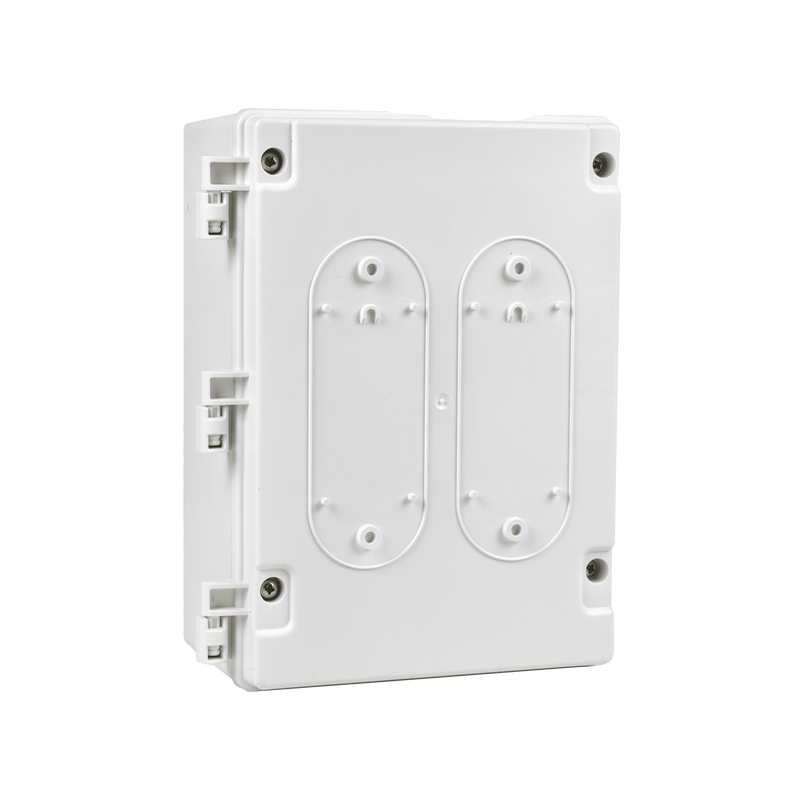

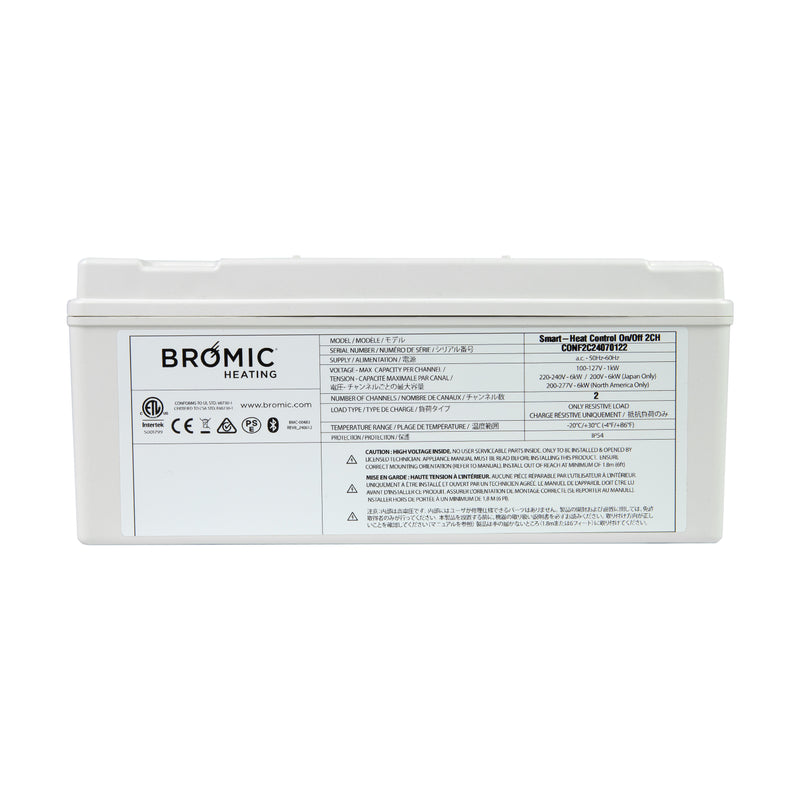

Bromic Affinity Smart-Heat On/Off Controller – Works with Gas & Electric Bromic Heaters

The Bromic Affinity Smart-Heat™ On/Off Controller is a smart control solution designed to power Bromic Platinum and Tungsten gas or electric patio heaters on and off at full capacity, with simple operation and flexible installation options. Available in 1-Channel, 2-Channel, and 5-Channel configurations, this controller allows you to manage single heaters, multiple heaters, or entire outdoor heating zones from one centralized system.

Using the Bromic Smart-Heat™ App, heaters can be controlled remotely via Wi-Fi or Bluetooth, with advanced features including scheduling, timers, and multi-zone grouping. For larger commercial installations, the 5-Channel model includes built-in Ethernet and BMS (0–10V) integration, while 1- and 2-Channel models can be expanded with an optional Expansion Board. Whether for residential patios or large commercial spaces, the Affinity On/Off Controller delivers reliable, streamlined heater control.

Note: This controller provides full on/off control only and does not adjust heat output. For variable heat levels, a dimmer controller is required.

Key Features

• Simple On/Off Control – Turn compatible Bromic heaters fully on or off with reliable, straightforward operation.

• Multiple Channel Options – Available in 1, 2, or 5 channels to support different installation sizes and zoning needs.

• Gas & Electric Compatibility – Designed for Bromic Platinum and Tungsten gas or electric patio heaters.

• Smart App Control – Control heaters using the Bromic Smart-Heat™ App via Wi-Fi or Bluetooth.

• Multi-Heater Management – Group heaters into zones and control multiple units simultaneously.

• Timer & Scheduling Functions – Automate heater operation for convenience and peace of mind.

• Commercial-Ready Expansion – 5-Channel model includes built-in Ethernet and 0–10V BMS integration; optional Expansion Board available for 1- and 2-Channel models.

• Indoor & Outdoor Rated – Flexible mounting options for residential or commercial environments.

Note: Ethernet connectivity is built into the 5-Channel controller. An optional Expansion Board is required for 1- and 2-Channel models.

Specifications & Dimensions

Dimensions:

1 & 2 Channel

5 Channel

Mounting Positions:

Clearances:

Channel Options

1-Channel Controller (1CH)
Ideal for controlling up to 10 gas heaters or 6,000W of electric heaters on a single channel.

2-Channel Controller (2CH)
Allows independent control of two heater zones or separate control of dual-element electric heaters.

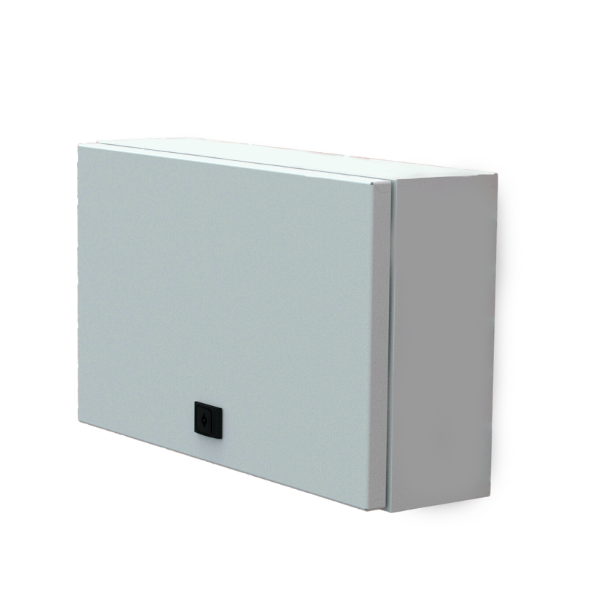

5-Channel Controller (5CH)
Designed for large commercial installations with multiple zones. Includes built-in Ethernet and BMS (0–10V) connectivity. Requires 3-phase power.

What's Included?

• (1) Bromic Affinity Smart-Heat™ On/Off Controller
  (Channel quantity selected at checkout)

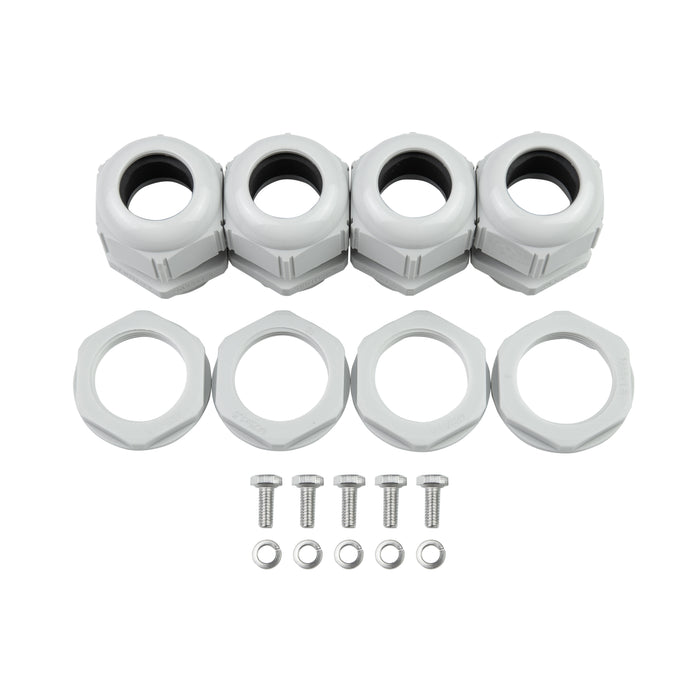

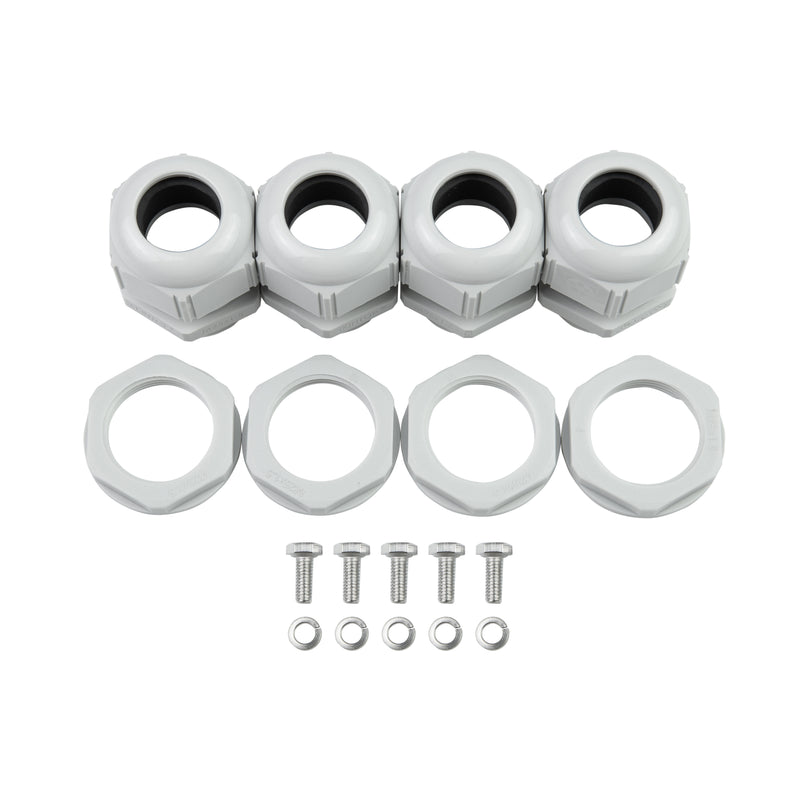

• Mounting hardware

Optional Accessories (Sold Separately)

• Expansion Board(required for Ethernet or BMS integration on 1- & 2-Channel models)
