Bromic Affinity Smart-Heat™ Dimmer Controller

The Bromic Affinity Smart-Heat™ Dimmer Controller delivers advanced, customizable control for Bromic Platinum and Tungsten electric patio heaters. Designed for users who want more flexibility than simple on/off operation, this controller allows you to manage heater output, create zones, and automate operation through the Bromic Smart-Heat™ App.

Available in 1-Channel, 2-Channel, and 5-Channel configurations, the Affinity Dimmer Controller supports a wide range of residential and commercial installations. Electric heaters benefit from true variable dimming, allowing precise adjustment of heat output through the Bromic Smart-Heat™ App. Control is handled via Wi-Fi or Bluetooth, with timers, schedules, and zone grouping built directly into the app. For large commercial projects, the 5-Channel model includes built-in Ethernet and BMS (0–10V) integration, while 1- and 2-Channel models can be expanded using an optional Expansion Board.

Important: The Affinity Smart-Heat™ Dimmer Controller is designed for electric heaters only. Gas patio heaters are not compatible with dimming controls and require an On/Off controller instead.

Key Features

• Variable Heat Control – Adjust electric heater output with true dimming for precise comfort control.

• Multiple Channel Options – Available in 1, 2, or 5 channels to support single heaters, multi-zone layouts, or large installations.

• Electric Heater Compatibility – Designed exclusively for Bromic Platinum and Tungsten electric patio heaters.

• Smart App Control – Control heat output, scheduling, and zones using the Bromic Smart-Heat™ App via Wi-Fi or Bluetooth.

• Zoning & Grouping – Assign heaters to zones and control multiple units simultaneously.

• Timer & Scheduling Functions – Automate heater operation for convenience, efficiency, and peace of mind.

• Commercial-Ready Expansion – 5-Channel model includes built-in Ethernet and 0–10V BMS integration; optional Expansion Board available for 1- and 2-Channel models.

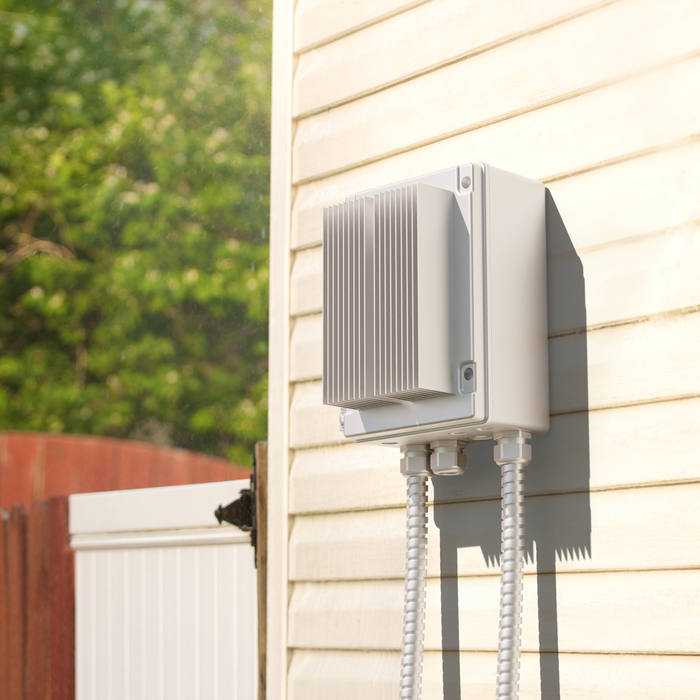

• Indoor & Outdoor Rated – Flexible mounting options for residential and commercial environments.

Specifications & Dimensions

Dimensions:

1 & 2 Channel

5 Channel

Mounting Positions:

Clearances:

Channel Options

1-Channel Dimmer (1CH)
Ideal for controlling up to 6,000W of heaters on a single channel.

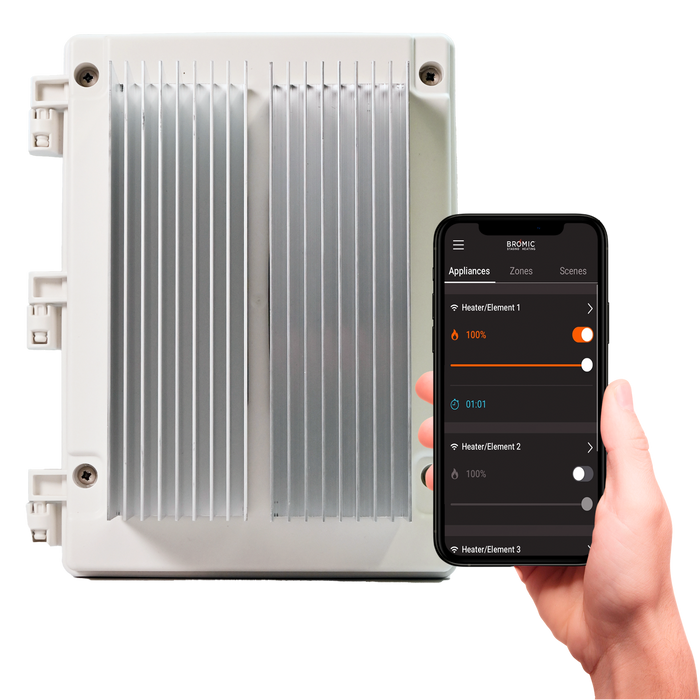

2-Channel Dimmer (2CH)
Allows independent control of two heater zones or separate control of dual-element heaters (up to 6,000W per channel).

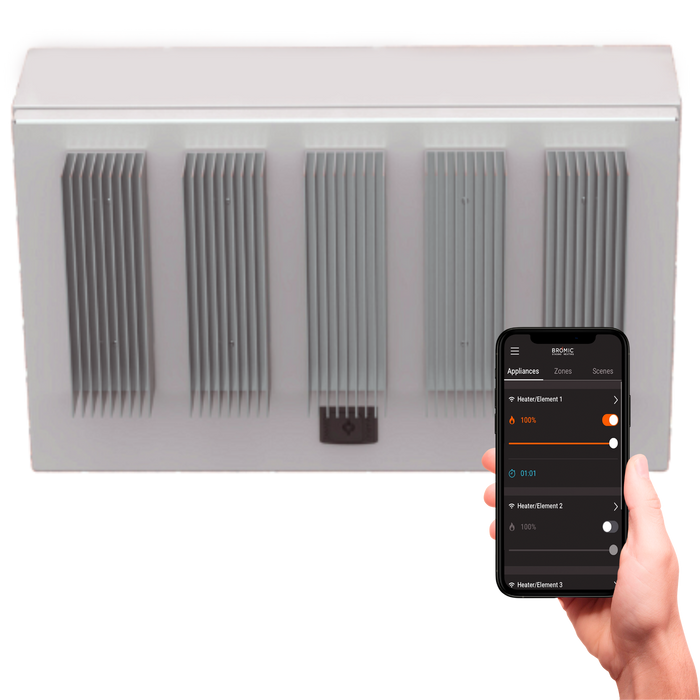

5-Channel Dimmer (5CH)
Designed for large commercial installations with multiple heating zones. Includes built-in Ethernet and BMS (0–10V) connectivity and requires 3-phase power.

What's Included?

• (1) Bromic Affinity Smart-Heat™ Dimmer Controller
  (Channel configuration selected at checkout)

• Mounting hardware

Optional Accessories (Sold Separately)

• Expansion Board(required for Ethernet or BMS integration on 1- & 2-Channel models)

Manuals
